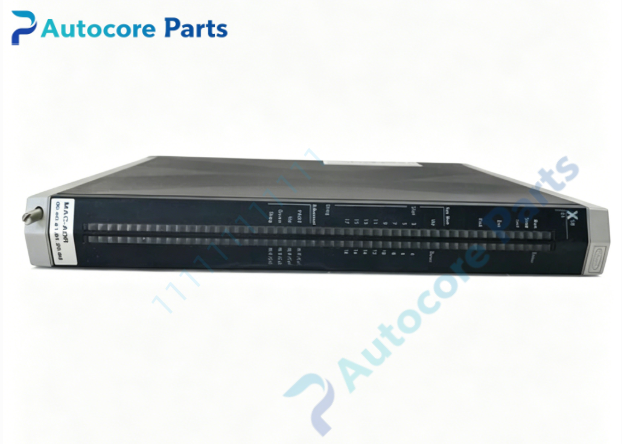

HIMA X-SB01 System Bus Base Module

Technical Specifications

Model:X-SB01

Part No:985210207

Brand:HIMA

Safety certification:SIL3,IEC61508

Power supply:24V DC,max 0.65A

Type:System bus subrack baseplate

Diagnosis:Module insertion detection,bus fault monitoring

Mounting:Plug-in rack installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:1.2kg

Certification:CE

System compatibility

Designed for HIMA HIMax PES safety system.It is the base backplane for HIMax series CPU,I/O and communication modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA X-SB01 system bus baseplate.It provides internal safety bus signal transmission and power distribution for all plug-in modules on the subrack.It supports hot swap of individual I/O modules without shutting down the whole safety system.The base monitors module status and reports insertion or bus fault to safety controller.

Installation

Install as HIMax subrack base,lock into rack frame,wire 24V DC power supply,insert CPU and I/O modules into slots,configure system via SILworX engineering software.

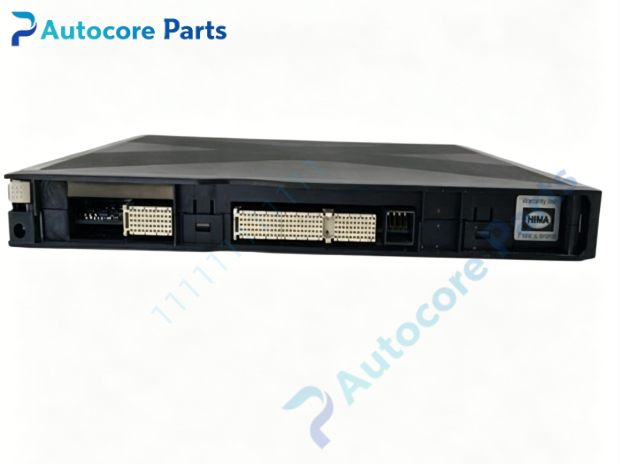

Interface

‑24V DC power terminals

‑Internal system bus connectors for modules

‑LED indicators for bus run and fault status

Circuit feature

SIL3 safety bus backplane design,galvanic isolation,hot swap architecture,stable power and signal distribution,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIMax series system bus baseplate X-SB01. Common faults:bus connector pin oxidation,terminal loose,internal trace damage.Confirm module compatibility before replacement.

Diagnostic

Bus communication failure or module insertion error triggers fault alarm;controller executes safety interlock logic.

Built‑in function

X-SB01 serves as system bus backbone and power distribution base for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

X-SB01 (P/N 985210207) belongs to HIMA HIMax family,SIL3 system bus baseplate supporting hot swap. Verify rack and module compatibility before ordering.Test bus communication during commissioning. ESD anti‑static protection shall be followed during installation.
