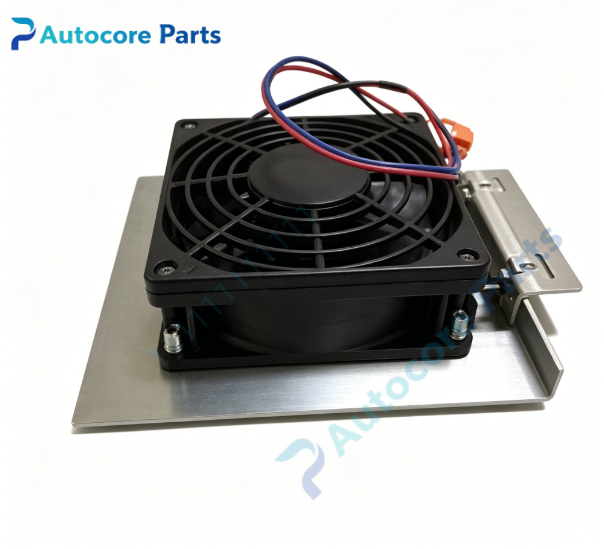

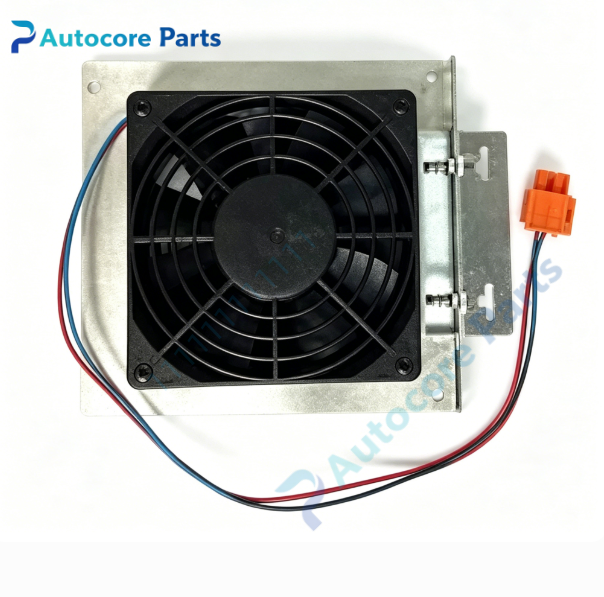

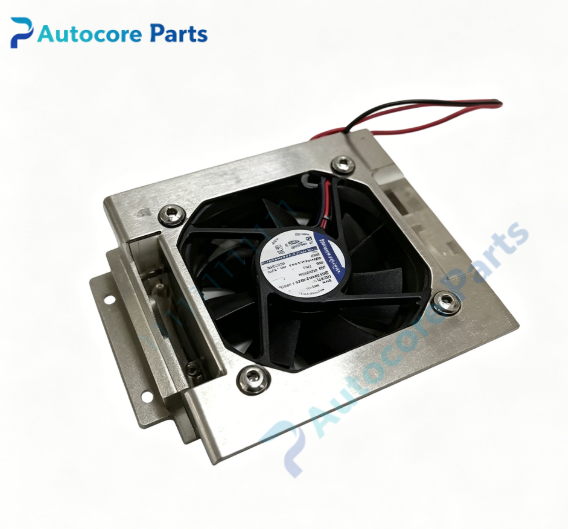

HIMA K9212 Axial Fan Module

Technical Specifications

Model:K9212

Brand:HIMA

Power supply:24V DC

Current consumption:200mA

Type:Single axial fan module

Diagnosis:Fan speed monitoring,stall detection,alarm signal output

Mounting:Plug-in subrack snap-in installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.3kg

Certification:CE

System compatibility

Designed for HIMA H41q / H51q HIQuad PES safety system,installed inside subrack to provide targeted cooling for high-power CPU and I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA K9212 subrack axial fan module.It provides local forced cooling for high heat dissipation modules in H41q/H51q rack to maintain module working temperature.The module monitors fan rotating speed in real time and sends diagnostic signal to Z6018 monitoring unit.Fan stall or abnormal rotation speed will trigger fault alarm.

Installation

Snap into H41q/H51q subrack slot,connect 24V DC power and diagnostic wiring,verify fan operation and alarm function via SILworX engineering software.

Interface

‑24V DC power terminals

‑Diagnostic signal output terminals

‑LED indicator for fan running status

Circuit feature

Compact plug-in fan design,real-time rotation speed supervision,short-circuit protection,strong anti-electromagnetic interference,meets safety requirements for hazardous industrial environment.

Feature

HIQuad series subrack cooling fan K9212. Common faults:fan bearing aging,cable loose,fan stall.Confirm subrack compatibility before replacement.

Diagnostic

Fan stall or speed drop triggers fault alarm;controller executes safety warning logic.

Built‑in function

K9212 provides targeted heat dissipation and fan fault monitoring for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

K9212 belongs to HIMA HIQuad family,plug-in 24VDC axial fan module with speed monitoring for H41q/H51q subrack. Verify subrack compatibility before ordering.Test fan and diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
