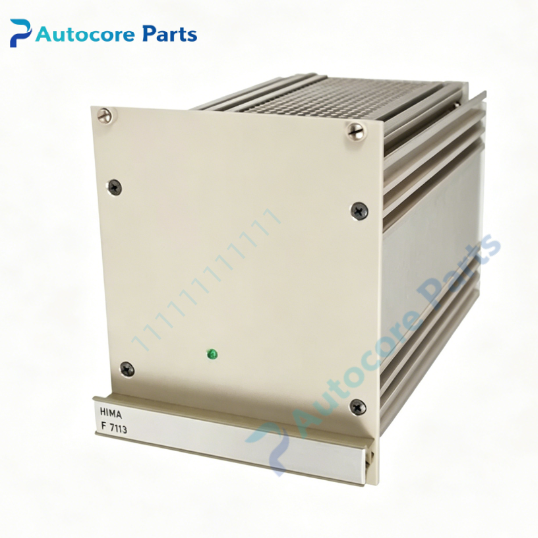

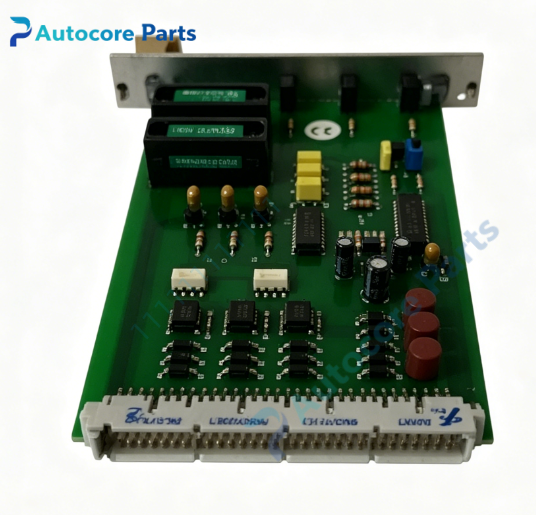

HIMA F7113 Safety Processor Module

Technical Specifications

Model:F7113

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Power supply:24V DC

Architecture:1oo2 redundant fail-safe

Diagnosis:Hardware watchdog,full periodic hardware self-diagnosis

Mounting:Plug-in subrack installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.46kg

Certification:CE

System compatibility

Designed for HIMA HIQuad safety system,runs safety application program and communicates with HIQuad I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown,BMS burner management and F&G fire gas protection system.

Function

SIL3 redundant safety processor module.It executes safety logic,reads field I/O signals,performs safety calculation and sends safety control commands.Built-in watchdog and continuous hardware self-test.When hardware fault or safety trip occurs,the module enters predefined safe state automatically.

Installation

Plug into HIQuad rack backplane,match with HIQuad I/O modules,download safety project via SILworX engineering software.

Interface

‑Backplane safety bus connector

‑Communication ports

‑LED indicators for run,fault and communication status

Circuit feature

1oo2 dual-core redundant fail-safe architecture,continuous hardware self-check,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series SIL3 safety CPU F7113. Common faults:firmware damage,backplane contact failure,communication circuit failure.Confirm rack compatibility before replacement.

Diagnostic

Hardware failure or communication error triggers fault alarm;controller executes safety interlock logic and enters safe state.

Built‑in function

F7113 performs safety logic control and SOE sequence of event recording for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F7113 belongs to HIMA HIQuad family,plug-in SIL3 redundant safety processor module for HIQuad safety subrack. Verify rack compatibility before ordering.Test safety logic,self-diagnosis and communication function during commissioning. ESD anti‑static protection shall be followed during installation.
