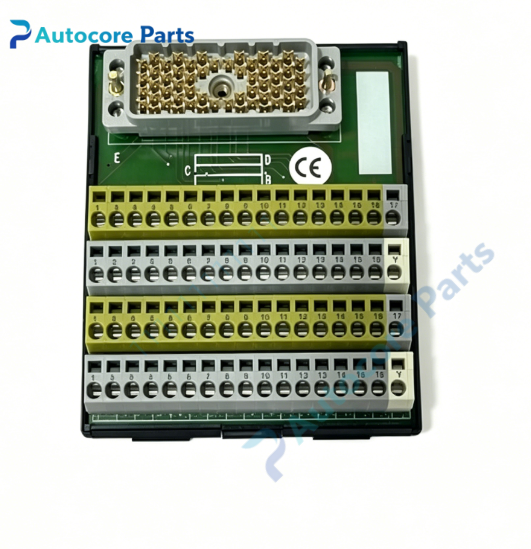

HIMA H7018 Safety Terminal Module

Technical Specifications

Model:H7018

Brand:HIMA

Permissible voltage:up to 48V DC / 30V AC

Per channel current:2A

Total max current:16A

Wire cross-section:0.2~2.5mm²

Connector:56-pin Vario-plug ELCO 8016

Mounting:35mm standard DIN rail,horizontal or vertical installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.22kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix PES safety system,matching with H7015A safety communication module,serves as field signal wiring terminal unit,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA H7018 safety terminal module is specially used for fast field wiring of H7015A communication module.It adopts 56-pin Vario-plug connector to realize quick disconnection and connection of field signal cables,simplifies on-site wiring work and facilitates module replacement and maintenance.

Installation

Clip onto standard 35mm DIN rail in control cabinet,complete field cable wiring and connect Vario-plug to H7015A module.

Interface

‑Field wiring terminals

‑56-pin Vario-plug ELCO 8016 connector

‑Module fixing buckle for DIN rail

Circuit feature

Compact terminal wiring design,stable signal transmission,suitable for safety instrument system signal wiring in hazardous industrial environment.

Feature

HIMatrix series safety terminal module H7018. Common faults:terminal loosening,cable aging,connector pin oxidation.Check connector contact before commissioning.

Diagnostic

Poor contact or loose wiring causes abnormal signal transmission;controller executes safety interlock logic.

Built‑in function

H7018 provides convenient field signal wiring for H7015A communication module in SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

H7018 belongs to HIMA HIMatrix family,DIN rail mounted safety terminal module matching H7015A. Verify module compatibility before ordering.Test wiring connection during commissioning. ESD anti‑static protection shall be followed during installation.
