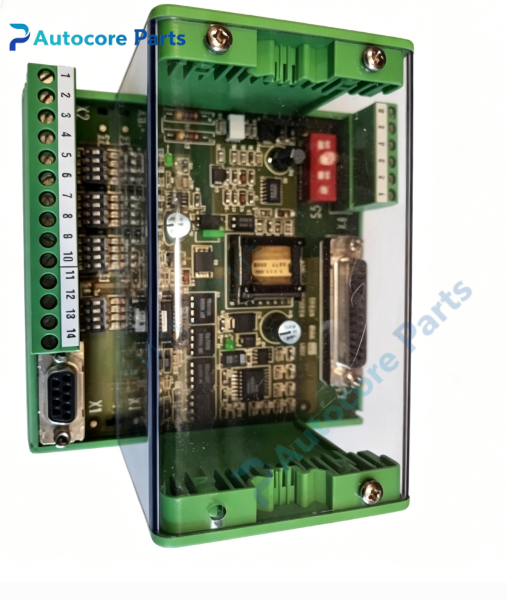

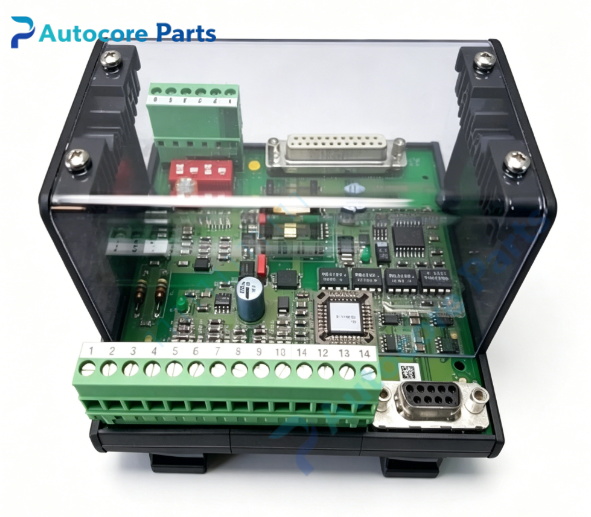

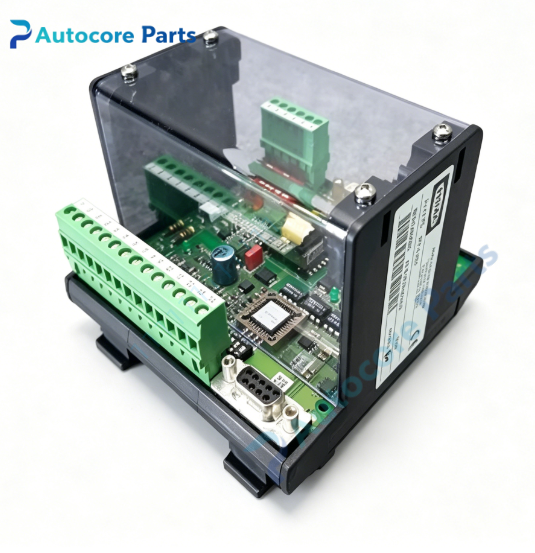

HIMA H7505 Multifunctional Interface Converter Module

Technical Specifications

Model:H7505

Brand:HIMA

Safety certification:SIL3,IEC61508

Power supply:24V DC

Signal interface:RS232C,20mA analog signal,support 2-wire & 4-wire connection

Diagnosis:Module self-test,signal line fault monitoring

Mounting:DIN rail installation

Protection class:IP20

Operating temperature:-20~+70℃

Relative humidity:5~95% non-condensing

Weight:0.29kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix PES safety system,used for conversion between serial RS232C and 20mA analog signals,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 multifunctional signal interface converter module.It realizes bidirectional conversion between RS232C serial signal and 20mA analog signal,supports 2-wire and 4-wire field sensor wiring.It continuously monitors signal line status.When signal line break or abnormal communication detected,the module triggers fault alarm and sends diagnostic message to safety controller.

Installation

Clip onto standard DIN rail in control cabinet,complete field sensor and serial cable wiring,configure communication parameters via SILworX engineering software.

Interface

‑RS232C serial port

‑20mA analog signal terminals

‑24V DC power terminals

‑LED indicators for run,fault and signal status

Circuit feature

Fail-safe safety design,built-in signal diagnosis,galvanic isolation,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIMatrix series SIL3 multifunctional interface converter H7505. Common faults:terminal aging,serial cable damage,internal signal conversion circuit failure.Confirm system firmware before replacement.

Diagnostic

Wire break or communication interruption triggers fault alarm;controller executes safety interlock logic.

Built‑in function

H7505 performs RS232C and 20mA signal conversion for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

H7505 belongs to HIMA HIMatrix family,DIN rail mounted SIL3 multifunctional signal interface converter module. Verify system compatibility before ordering.Test signal conversion and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
