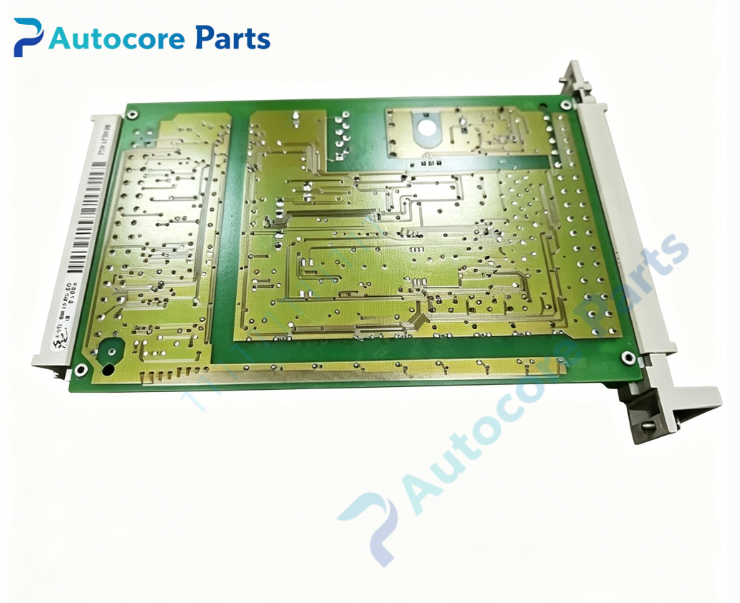

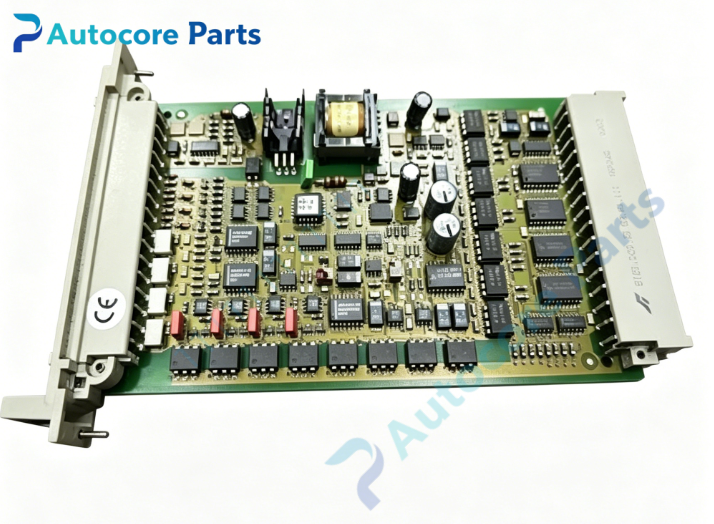

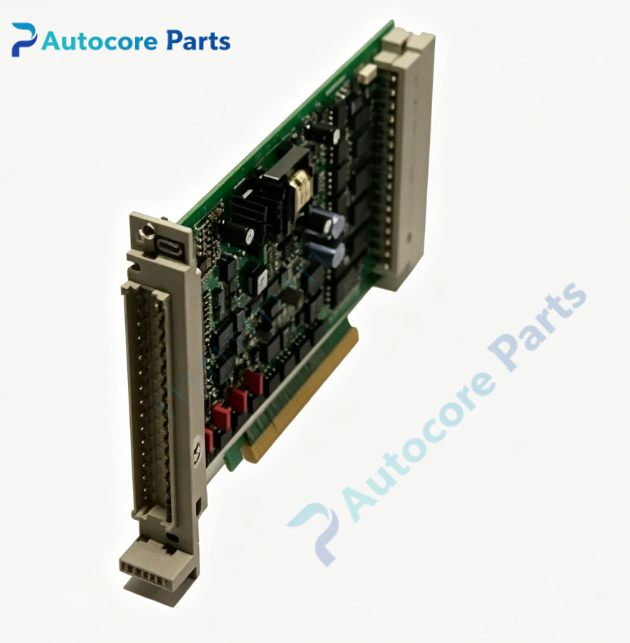

HIMA F6217 Safety Digital Output Module

Technical Specifications

Model:F6217

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:8-channel safety digital output

Output:24V DC for solenoid valve and actuator

Diagnosis:Per channel wire break and short circuit loop monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.40kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X safety system,used for driving field solenoid valves and safety actuators,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 8-channel safety digital output module.It receives safety commands from HIQuad X safety controller and outputs 24V DC control signals.Each channel supports independent loop monitoring.When safety trip triggered,the module enters predefined safe state and cuts off output.

Installation

Plug into HIQuad X rack backplane,wire field actuators to module terminals,configure via SILworX engineering software.

Interface

‑8 channels digital output terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 8-channel safety DO module F6217. Common faults:output channel burnout,communication port damage,terminal connector failure.Confirm rack compatibility before replacement.

Diagnostic

Circuit wire break or short circuit triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F6217 performs field safety output control for SIS safety instrumented system emergency shutdown,widely used for process plant safety spare replacement.

Product Brief

F6217 belongs to HIMA HIQuad X family,plug-in SIL3 8-channel safety digital output module.Verify rack compatibility before ordering.Test output channel and diagnosis function during commissioning.
