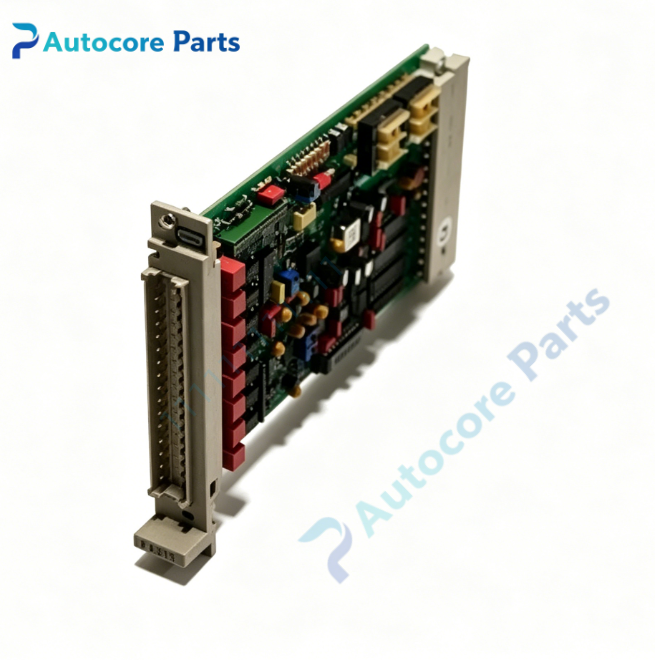

HIMA F6215 Safety Analog Input Module

Technical Specifications

Model:F6215

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:4-channel analog input

Signal type:4~20mA,0~1V/5V/10V,Pt100 RTD

Resolution:12-bit

Diagnosis:Per-channel wire break,short circuit and overrange monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+70℃

Relative humidity:5~95% non-condensing

Weight:0.20kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X safety system,collects temperature,pressure and flow analog signals from field transmitters and RTD sensors,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 4-channel safety analog input module.It converts field analog signals into digital data and transmits to HIQuad X safety controller.Independent channel galvanic isolation,each channel monitors circuit faults automatically.When wire break,short circuit or signal overrange detected,the module triggers fault alarm and system enters safe state.

Installation

Plug into HIQuad X rack backplane,wire field transmitters and temperature sensors to module terminals,configure signal type via SILworX engineering software.

Interface

‑4 channels analog signal input terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,periodic hardware self-test,channel galvanic isolation,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 4-channel analog input module F6215. Common faults:input channel damage,terminal connector failure,backplane contact failure.Confirm firmware version before replacement.

Diagnostic

Input circuit wire break,short circuit or signal out of range triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F6215 acquires field analog measurement signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F6215 belongs to HIMA HIQuad X family,plug-in SIL3 4-channel multi-range analog input module for HIQuad X safety subrack. Verify rack compatibility before ordering.Test analog signal acquisition and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
