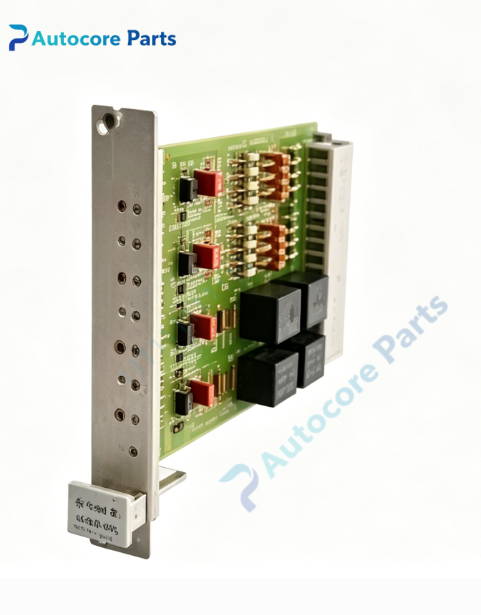

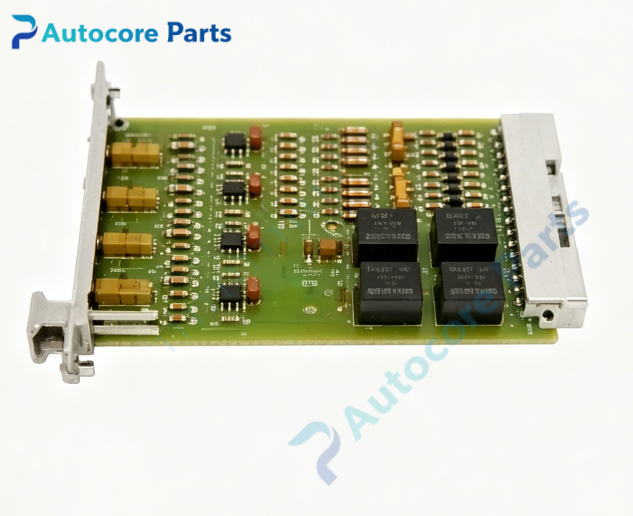

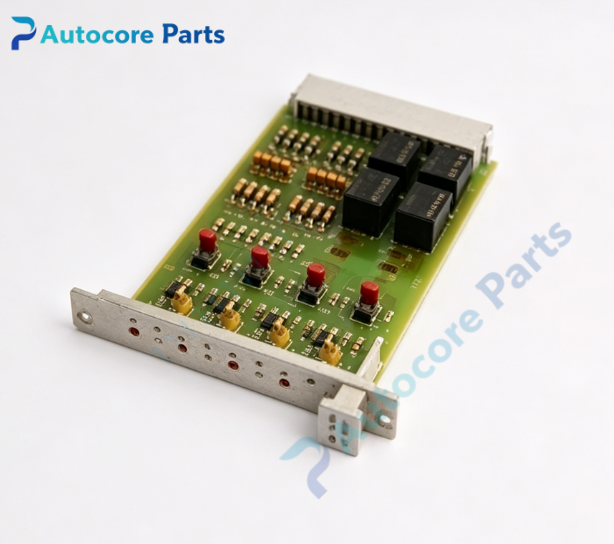

HIMA F6205 Safety CPU Module

Technical Specifications

Model:F6205

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Power supply:24V DC

Architecture:Dual core 1oo2 fail-safe

Diagnosis:Full hardware periodic self-diagnosis

Mounting:Plug-in subrack installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.48kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X safety system,executes safety logic and communicates with HIQuad X I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown,BMS burner management and F&G fire gas protection system.

Function

SIL3 fail-safe main CPU module.It runs safety application program,collects field I/O signals,performs safety logic calculation and sends safety control commands.Built-in watchdog and continuous hardware self-test.When hardware fault or safety trip occurs,the module enters predefined safe state automatically.

Installation

Plug into HIQuad X rack backplane,match with HIQuad X I/O modules,program and download safety project via SILworX engineering software.

Interface

‑Backplane safety bus connector

‑Communication ports

‑LED indicators for run,fault and communication status

Circuit feature

Dual-core 1oo2 redundant fail-safe architecture,continuous hardware self-check,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 safety CPU F6205. Common faults:firmware damage,backplane contact failure,communication circuit failure.Confirm rack and firmware compatibility before replacement.

Diagnostic

Hardware error or communication failure triggers fault alarm;system executes safety interlock logic and enters safe state.

Built‑in function

F6205 executes safety logic control and SOE event recording for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F6205 belongs to HIMA HIQuad X family,plug-in SIL3 main safety CPU for HIQuad X safety rack.Verify system compatibility before ordering.Test safety logic,self-diagnosis and communication function during commissioning.
