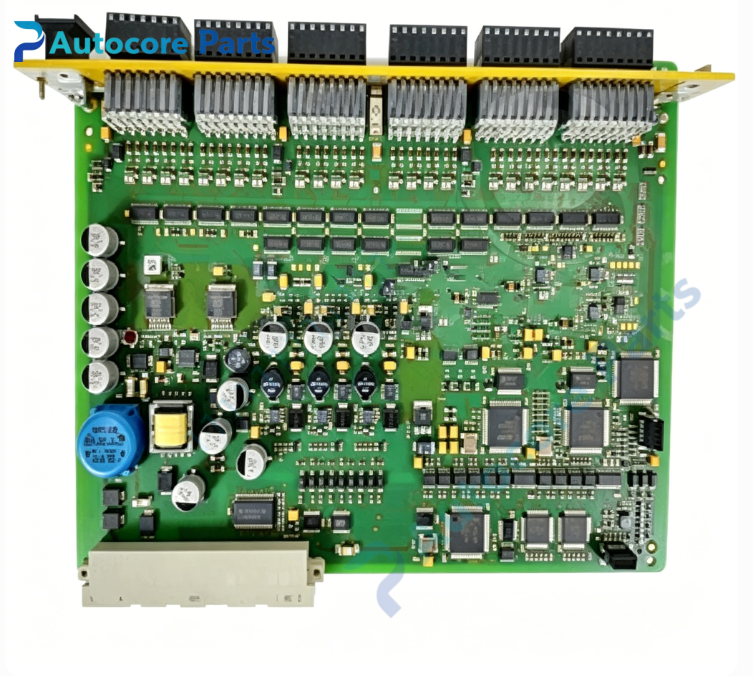

HIMA F60MI2401 Configurable Multi Input Module

Technical Specifications

Model:F60MI2401

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:24 configurable mixed input

Signal type:4~20mA analog input,24V DC digital input

Diagnosis:Per-channel wire break and short circuit monitoring,transmitter supply diagnosis

Mounting:Plug-in HIMatrix F60 subrack

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.43kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix F60 modular safety system,collects analog and digital field sensor signals,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 24-channel configurable multi-input module.It can configure each channel as analog 4-20mA or digital input to collect field sensor data and send signals to F60 safety CPU.Each channel has independent line fault monitoring.When wire break or short circuit detected,the module triggers alarm and system enters safe state.

Installation

Plug into HIMatrix F60 rack backplane,wire field transmitters and switches to module terminals,configure channel type via SILworX engineering software.

Interface

‑24 channels signal input terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,channel galvanic isolation,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIMatrix F60 series SIL3 mixed input module F60MI2401. Common faults:input channel damage,terminal connector failure,backplane contact failure.Confirm firmware version before replacement.

Diagnostic

Input circuit wire break or short circuit triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F60MI2401 acquires mixed analog and digital field signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F60MI2401 belongs to HIMA HIMatrix F60 family,plug-in SIL3 configurable multi-input module for F60 safety rack.Verify rack compatibility before ordering.Test signal acquisition and fault diagnosis function during commissioning.
