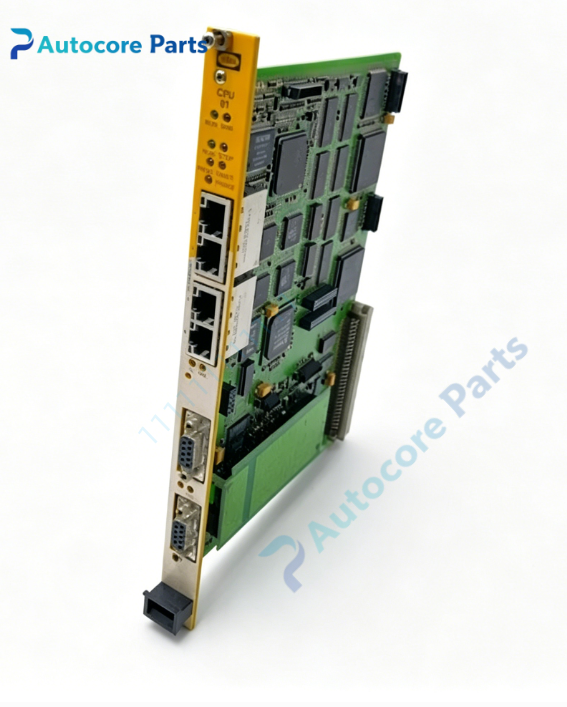

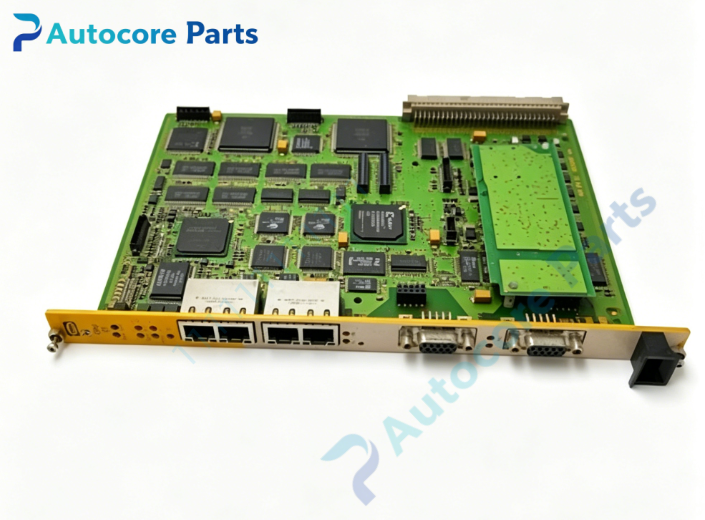

HIMA F60CPU01 Safety CPU Module

Technical Specifications

Model:F60CPU01

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified,PL e Cat.4

Power supply:24V DC

Communication:4×100Base-TX Ethernet integrated switch

Mounting:Plug-in HIMatrix F60 subrack

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.50kg

Certification:CE

System compatibility

Main CPU for HIMA HIMatrix F60 modular safety system,cooperates with F60 series I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown,BMS burner management and F&G fire gas protection system.

Function

SIL3 fail-safe main CPU module.It executes safety application logic,reads field I/O signals,runs periodic hardware self-test,realizes SOE event sequence recording and safe ethernet communication.When hardware fault or safety trip occurs,the controller automatically enters predefined safe state.

Installation

Plug into HIMatrix F60 rack backplane,match with F60 I/O modules,program and download safety project via SILworX engineering software.

Interface

‑Backplane bus connector for I/O modules

‑4 Ethernet RJ45 ports

‑LED indicators for run,error and communication status

Circuit feature

Dual-core 1oo2 fail-safe safety architecture,continuous hardware diagnostic,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial area.

Feature

HIMatrix F60 main safety CPU F60CPU01. Common faults:firmware corruption,ethernet port damage,backplane connector failure.Confirm firmware version before replacement.

Diagnostic

Hardware failure or communication error triggers fault alarm;system executes safety interlock logic.

Built‑in function

F60CPU01 runs safety logic and controls all I/O modules for SIS safety instrumented system emergency shutdown,widely used for process plant safety spare replacement.

Product Brief

F60CPU01 belongs to HIMA HIMatrix series,plug-in SIL3 main safety CPU for F60 modular safety rack.Verify rack and I/O compatibility before ordering.Test logic,diagnosis and communication function during commissioning.
