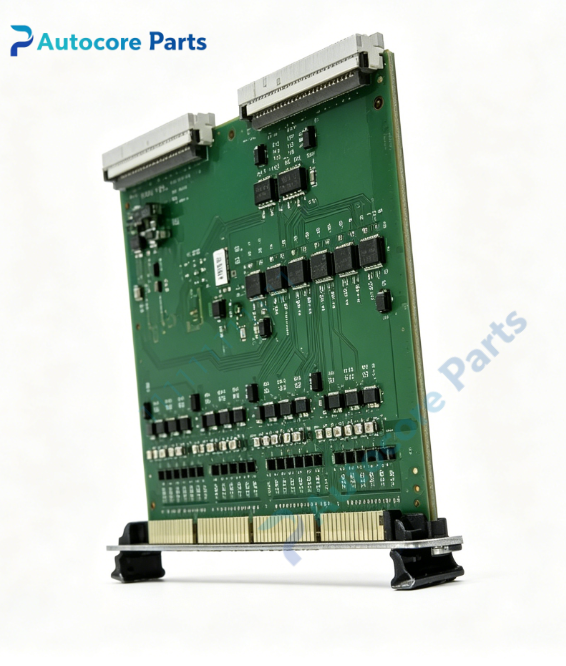

HIMA F522032 Safety Digital Output Module

Technical Specifications

Model:F522032

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:32-channel safety digital output

Output signal:24V DC

Diagnosis:Per channel wire break and short circuit loop monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.46kg

Certification:CE

System compatibility

Special variant version of F5220,designed for HIMA HIQuad F5100 / F7100 safety system,output safety control signals for field solenoid valves and safety actuators,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 32-channel safety digital output module.It receives safety shutdown commands from HIQuad controller,outputs 24V DC control signals to field safety equipment.Each channel supports independent loop fault monitoring.When safety trip triggered,module will cut off output to realize fail-safe protection.

Installation

Plug into HIQuad F5100/F7100 rack backplane,wire field actuators to module terminals,complete hardware configuration via HIMA engineering software.

Interface

‑32 channels digital output terminals

‑Backplane safety bus connector

‑LED indicators for channel status and fault

Circuit feature

1oo2 fail-safe safety architecture,periodic hardware self-test,built-in loop fault detection,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series special variant SIL3 32-channel digital output module F522032. Common faults:output channel burnout,internal circuit damage,connector pin failure.Confirm controller firmware version before replacement.

Diagnostic

Module or wiring fault triggers channel fault alarm;controller executes safety interlock logic.

Built‑in function

F522032 outputs safety control signals for SIS safety instrumented system emergency shutdown protection,widely used for chemical and power plant safety spare replacement.

Product Brief

F522032 belongs to HIMA HIQuad I/O family,plug-in SIL3 digital output module (special variant of F5220) for F5100/F7100 safety subrack. Verify rack compatibility before ordering. Test output performance and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
