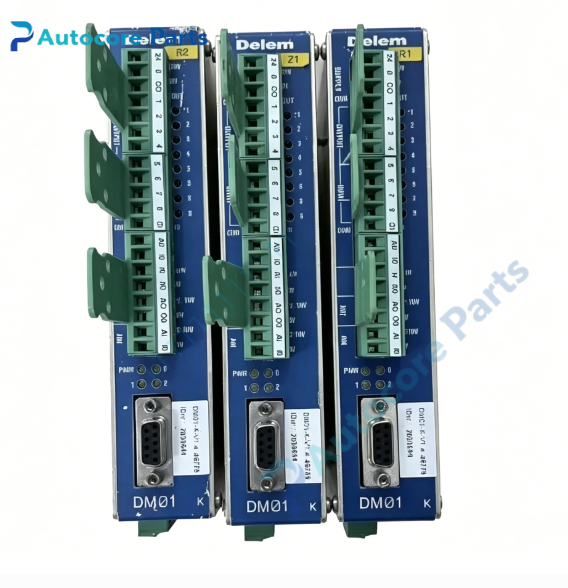

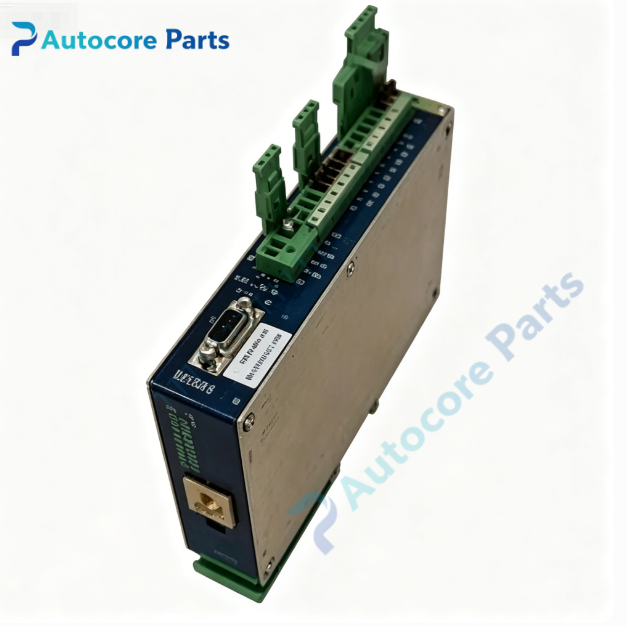

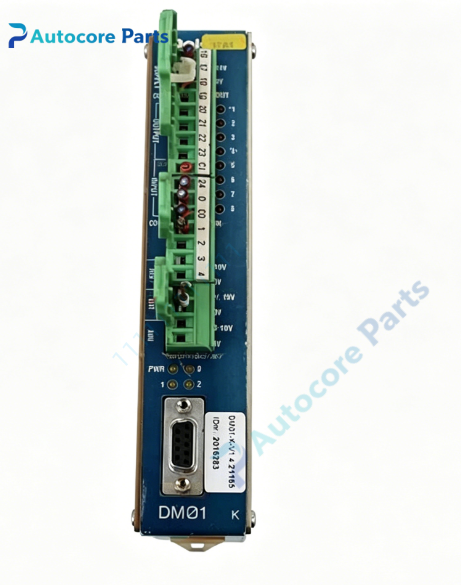

DELEM DM01-K-V1.4 CNC Press Brake Axis Control Module

Technical Specifications

Model: DM01-K-V1.4 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Axis Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.45 kg

System compatibility

DM01-K-V1.4 is a dedicated axis motion control module for DELEM press brake CNC systems. It communicates with DELEM DA series controllers, matches encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM01-K-V1.4 serves as the core motion control unit of DELEM bending machine control system. It collects position feedback signals from linear encoders, executes axis closed-loop calculation, outputs analog control signals to hydraulic valves. It continuously monitors axis running status and triggers fault alarm signals once over-travel or pressure abnormalities are detected. It is used to replace damaged modules when the press brake loses precise bending axis control.

Installation

Cut off main power supply before installation. Open the electrical cabinet and discharge residual voltage. Remove the old module, install DELEM DM01-K-V1.4 and fasten mounting screws. Connect bus port, encoder cables and hydraulic valve signal terminals. Check wiring definition, download matching machine parameters, carry out axis test before formal production.

Interface

Fieldbus communication port, analog output terminals, encoder input ports, digital I/O terminals, status LED indicators for DELEM DM01-K-V1.4 module.

Feature

Original DELEM axis control module, version V1.4 firmware, anti-interference circuit design, high-precision position sampling, stable bus communication, compact metal casing. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM01-K-V1.4. Axis positioning deviation: verify encoder wiring polarity and firmware parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM01-K-V1.4 is Dutch DELEM axis motion control module for hydraulic press brake. It executes encoder signal acquisition and closed-loop axis control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
