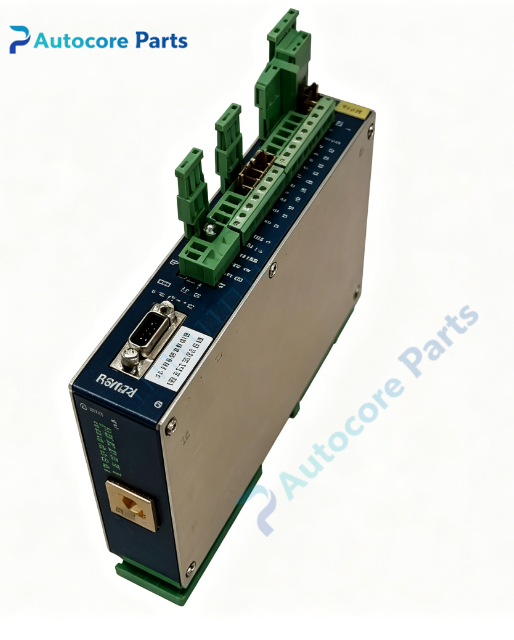

DELEM DM01-K Motion Control Axis Module

Technical Specifications

Model: DM01-K Brand: DELEM (Netherlands) Product Type: Single-Axis Motion Control Module Mounting: DIN rail mounting inside press brake electrical cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.50 kg

System compatibility

DM01-K is compact single-axis motion control module of DELEM Modusys system. It communicates with DA series CNC controllers via HSB high-speed bus, compatible with DA52,DA53,DA56,DA58,DA61,DA65 controllers. It matches linear encoder and hydraulic proportional valve, widely used for hydraulic press brake maintenance and spare replacement.

Function

DM01-K executes real-time closed-loop position calculation for single axis. It receives position feedback signal from linear encoder, calculates position deviation and outputs analog control signal to hydraulic proportional valve. It can be applied for backgauge axis or crowning compensation axis control. It continuously monitors encoder signal quality, HSB bus communication status and power supply state, sends fault alarm messages to main controller once signal loss or positioning error occurs. It is used to replace defective axis modules when press brake single axis loses positioning control.

Installation

Cut off main power supply before installation. Mount DM01-K on DIN rail and lock the module. Connect 24V DC power, HSB bus cable, encoder cable and hydraulic valve analog terminals. Check wiring definition, upload machine parameters, complete axis homing and test run before formal production.

Interface

HSB fieldbus port, single channel encoder input connector, analog output terminals for hydraulic valve, digital I/O terminals, LED status indicators for DELEM DM01-K module.

Feature

Original DELEM Modusys single axis module, high-speed HSB bus real-time communication, compact DIN rail housing, built-in self-diagnostic function, strong anti-interference performance for industrial cabinet environment. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

No power indicator: check 24V DC power supply and module fuse for DM01-K. Single axis positioning jump: verify encoder wiring, shielding and machine parameter configuration. HSB bus communication error: inspect bus cable connection, terminal resistor and grounding condition.

Product Brief

DM01-K is Dutch DELEM compact single-axis motion control module for hydraulic press brake. It collects linear encoder feedback and outputs analog valve signals for single axis closed-loop control, classic spare part for legacy metal fabrication machine overhaul.
