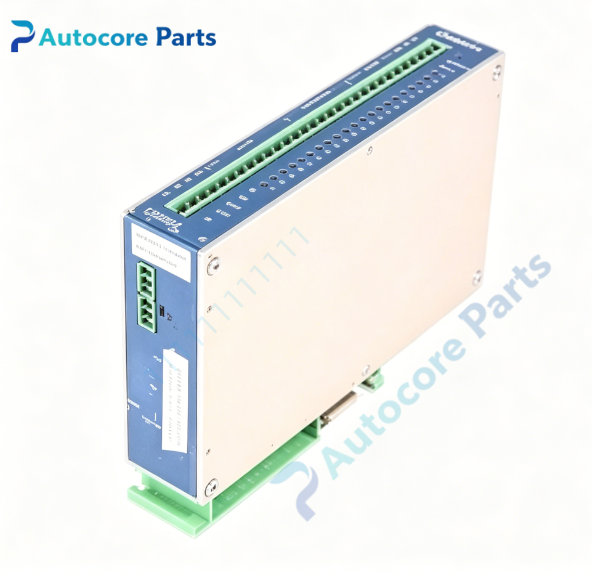

DELEM DM04-K Motion Control Axis Module

Technical Specifications

Model: DM04-K Brand: DELEM (Netherlands) Product Type: Four-Axis Motion Control Module Mounting: DIN rail mounting inside press brake electrical cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.65 kg

System compatibility

DM04-K is compact four-axis motion control module of DELEM Modusys system. It communicates with DA series CNC controller via HSB high-speed bus, compatible with DA52,DA53,DA56,DA58,DA61,DA65 controllers. It connects linear encoders and hydraulic proportional valves, widely used for multi-axis electro-hydraulic synchronous press brake maintenance and spare replacement.

Function

DM04-K performs real-time closed-loop position calculation for up to four axes. It receives position feedback signals from linear encoders, calculates position deviation and outputs analog control signals to hydraulic proportional valves. It supports Y1,Y2,X,R multi-axis control and crowning compensation signal output. It continuously monitors encoder signal quality, HSB bus communication and power supply state, sends fault alarm messages to main controller once signal loss or axis synchronization error occurs. It is used to replace defective axis modules when press brake loses multi-axis synchronous bending control.

Installation

Cut off main power supply before installation. Mount DM04-K on DIN rail and lock the module. Connect 24V DC power, HSB bus cable, multi-channel encoder cables and hydraulic valve analog terminals. Check wiring definition, upload machine parameters, complete axis homing and test run before formal production.

Interface

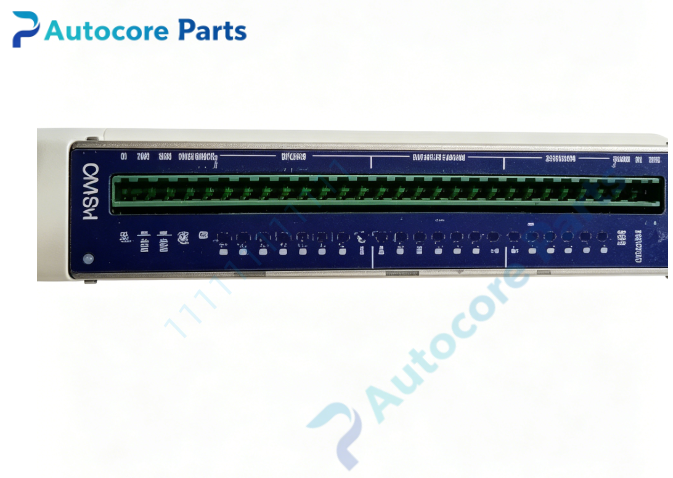

HSB fieldbus port, four encoder input connectors, analog output terminals for hydraulic valves, digital I/O terminals, LED status indicators for DELEM DM04-K module.

Feature

Original DELEM Modusys 4-axis compact module, high-speed HSB bus communication, high precision position sampling, built-in self-diagnostic function, small DIN rail housing, strong anti-interference performance. This legacy spare part supports field repair of DELEM electro-hydraulic press brake systems.

Diagnostic

No power indicator: check 24V DC power supply and module fuse for DM04-K. Multi-axis positioning deviation: verify encoder wiring, shielding and machine parameter configuration. HSB bus communication fault: inspect bus cable connection, terminal resistor and grounding condition.

Product Brief

DM04-K is Dutch DELEM compact four-axis motion control module for electro-hydraulic synchronous press brake. It collects multi-channel linear encoder feedback and outputs analog valve signals for multi-axis closed-loop synchronous control, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
