DELEM DA-41 CNC Press Brake Controller

Technical Specifications

Model: DA-41 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 3.6 kg

System compatibility

DA-41 is a cost-effective 2-axis CNC controller specially designed for torsion bar synchronous press brake. It matches encoder and I/O modules, widely used in metal fabrication workshops for controller replacement during old bending machine overhaul.

Function

DA-41 serves as the core operation control unit of torsion bar hydraulic press brake. It supports angle programming, stores up to 100 product programs and 15 tool sets, maximum 25 bends per program. It realizes Y ram axis and X backgauge axis closed-loop positioning control, calculates unfolded length of sheet metal. It monitors machine running status and triggers alarm signals once over-travel or signal faults are detected. It is used to replace damaged controllers when the torsion bar press brake cannot complete normal bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-41 and lock fixing fasteners. Connect 24V DC power, encoder cables and digital I/O terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

Encoder input ports, digital I/O terminals, RS232 communication port, status LED indicators for DELEM DA-41 controller.

Feature

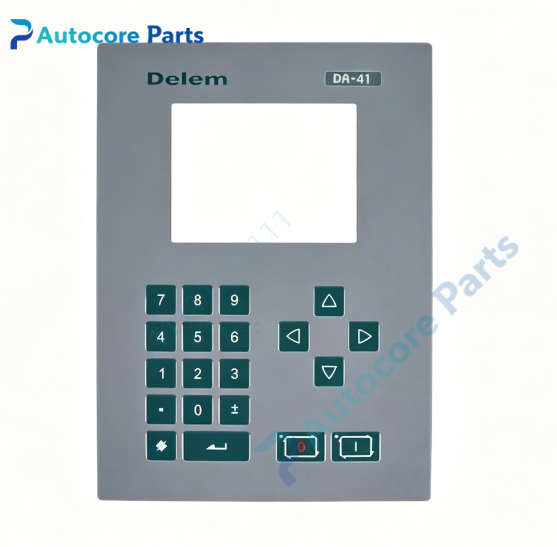

Original DELEM controller, 4.7 inch monochrome LCD 320×240 display, physical keyboard operation, simple angle programming, built-in material parameter library, compact structure and stable operation. This legacy spare part supports field repair of old torsion bar press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-41. Backgauge positioning error: verify encoder wiring polarity and machine parameter setting. Intermittent signal loss: inspect cable shielding and cabinet grounding condition.

Product Brief

DA-41 is Dutch DELEM CNC controller for torsion bar hydraulic press brake. It executes angle programming and 2-axis closed-loop control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.
