DELEM DM05 Miniature PCB Power Relay

Technical Specifications

Model: DM05 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Axis Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.42 kg

System compatibility

DM05 is a dedicated axis control and I/O module developed for DELEM press brake CNC systems. It works together with DELEM series controllers, encoder and hydraulic valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM05 serves as the core signal processing unit of DELEM bending machine control system. It collects digital and analog I/O signals, processes axis feedback data, transmits control commands to hydraulic proportional valves. It continuously monitors machine operating state and outputs fault alarm signals when abnormal conditions occur. It is used to replace damaged modules when the press brake loses axis control function.

Installation

Cut off main power supply before installation. Open the electrical cabinet, discharge residual voltage. Remove the old module, install DELEM DM05 and fasten mounting screws. Connect fieldbus port, encoder cables and digital I/O terminals. Check wiring definition, download matching machine parameters, carry out axis test before formal production.

Interface

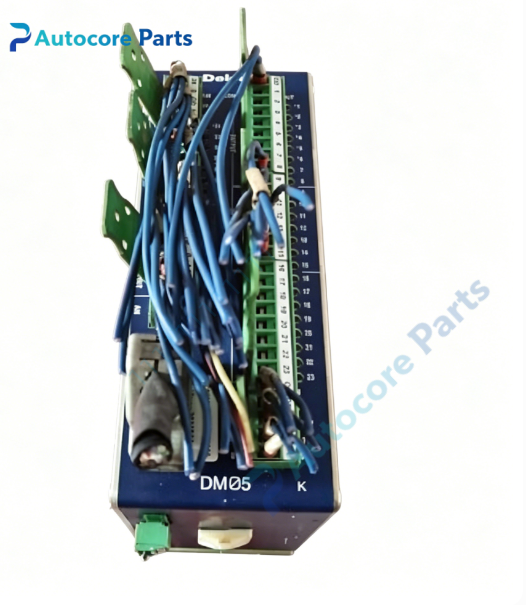

Fieldbus communication port, analog output terminals, digital input & output terminals, status LED indicators for DELEM DM05 module.

Feature

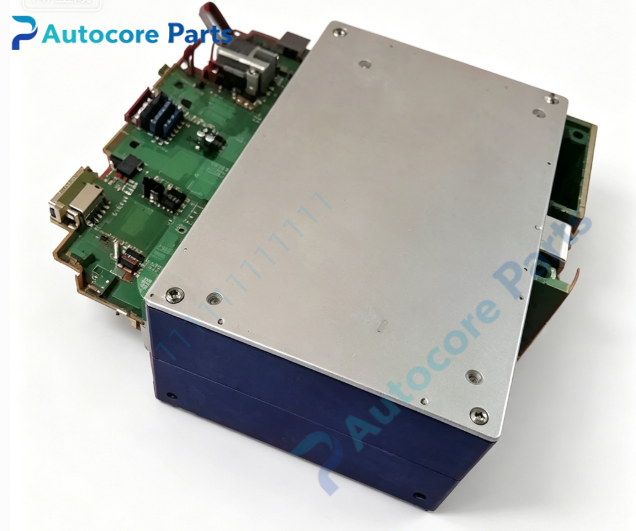

Original DELEM axis control module, compact metal housing, stable signal acquisition, anti-interference circuit design, reliable bus communication. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM05. Axis out of sync: verify bus connection and parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM05 is Dutch DELEM axis control module for hydraulic press brake. It executes I/O signal acquisition and axis command transmission for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
