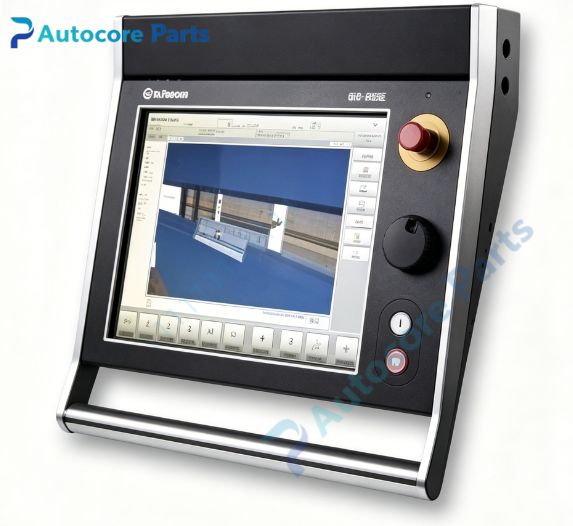

DELEM DA66T CNC Press Brake Touch Controller

Technical SpecificationsModel: DA66T Brand: DELEM (Netherlands) Product Type: Touchscreen Graphical CNC Controller Mounting: Panel / swing arm mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 5.6 kg

System compatibilityDA66T is high-end touch graphical CNC controller for DELEM Modusys system. It communicates with DM series axis modules via HSB high-speed bus, compatible with DM01,DM04,DM102,DM104,DM51 axis modules. It fits electro-hydraulic synchronous press brakes and tandem dual bending machines, widely used for sheet metal workshop machine retrofit and spare replacement.

FunctionDA66T acts as core touch operation control unit of hydraulic press brake. It supports 2D graphical programming, 3D workpiece visualization and bending simulation with integrated collision detection. It automatically calculates bending sequence, sheet metal unfolded length and bending tonnage, stores large quantity of part programs, tool libraries and material parameters. It supports multi-axis closed-loop control including Y1,Y2,X1,X2,R,Z axes, automatic crowning compensation and angle sensor bending correction. It monitors ram position, machine tonnage and safety signals, triggers alarm once over-travel, hydraulic fault or HSB communication dropout occurs. It is used to replace defective controllers when press brake cannot run graphical touch bending programming.

InstallationCut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA66T and lock fasteners. Connect 24V DC power, HSB bus cable, encoder feedback cables, Ethernet and USB terminals. Verify wiring definition, upload machine parameters, complete axis homing and trial bending test before formal production.

InterfaceEthernet port, dual USB ports, dual RS232 service ports, HSB bus interface, encoder input ports, digital I/O terminals, analog hydraulic valve output, emergency stop and handwheel interface, LED status indicators for DELEM DA66T controller.

FeatureOriginal DELEM DA66T touch controller, 17 inch 1280×1024 TFT color touch display, embedded real-time Windows multi-task system, DXF file import, Profile-TL offline programming compatible, USB program backup and restore, built-in PLC, multi-language menu, support tandem bending machine linkage and angle sensor correction. This legacy spare part supports field repair and upgrade of DELEM electro-hydraulic synchronous press brake systems.

DiagnosticNo display after power on: check 24V DC power supply and power fuse for DA66T. Bending sequence calculation error: verify tool library, sheet material parameter and part drawing configuration. Intermittent HSB bus alarm: inspect HSB cable, connector pin oxidation, shielding and cabinet grounding condition.

Product BriefDA66T is Dutch DELEM high-end touchscreen graphical CNC controller for electro-hydraulic synchronous press brake. It executes 2D/3D touch graphical programming, bending simulation and multi-axis synchronous control for complex sheet metal bending jobs, classic spare part for legacy metal fabrication machine overhaul.
