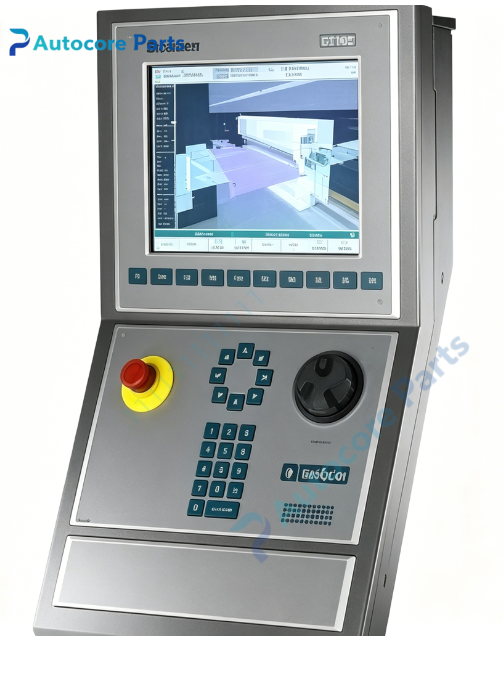

DELEM DA-66W CNC Press Brake Controller

Technical SpecificationsModel: DA-66W Brand: DELEM (Netherlands) Product Type: 3D Graphical CNC Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 5.6 kg

System compatibilityDA-66W is high-end Windows embedded CNC controller for DELEM Modusys system. It communicates with DM series axis modules over HSB bus, compatible with DM01,DM04,DM102,DM104,DM51. It supports single press brake and tandem dual bending machines, widely used for complex sheet metal bending jobs and machine retrofit.

FunctionDA-66W acts as core graphical operation control unit of electro-hydraulic press brake. It supports 2D graphical programming, 3D workpiece visualization and bending simulation with collision detection. It automatically calculates bending sequence and sheet metal unfolded length, stores large amount of part programs, tool libraries and material parameters. It supports multi-axis control including Y1,Y2,X1,X2,R,Z axes, automatic crowning compensation and angle sensor bending correction. It monitors ram position, tonnage and machine safety signals, triggers alarm when over-travel, hydraulic failure or communication error occurs. It is used to replace defective controllers when press brake cannot run 3D graphical bending programming.

InstallationCut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-66W and lock fasteners. Connect 24V DC power, HSB bus cable, encoder feedback cables, Ethernet and USB terminals. Check wiring definition, upload machine parameters, complete axis homing and trial bending test before formal production.

InterfaceEthernet port, USB ports, RS232 service port, HSB bus interface, encoder input ports, digital I/O terminals, analog hydraulic valve output, LED status indicators for DELEM DA-66W controller.

FeatureOriginal DELEM DA-66W graphic controller, 12 inch high brightness TFT color display, embedded real-time Windows multitasking system, DXF file import, Profile-T offline programming software compatible, built-in PLC, network file transfer, USB program backup and restore. It supports tandem machine linkage and sensor bending correction for high precision bending. This legacy spare part supports field repair of DELEM electro-hydraulic synchronous press brake systems.

DiagnosticNo display after power on: check 24V DC power supply and power fuse for DA-66W. Bending simulation calculation error: verify tool library, material parameter and part drawing setting. HSB bus intermittent communication alarm: inspect HSB bus cable, connector, shielding and cabinet grounding.

Product BriefDA-66W is Dutch DELEM Windows-based high-end 3D graphical CNC controller for electro-hydraulic synchronous press brake. It executes 2D/3D graphical programming, bending simulation and multi-axis synchronous control for complex sheet metal bending, classic spare part for legacy metal fabrication machine overhaul.
