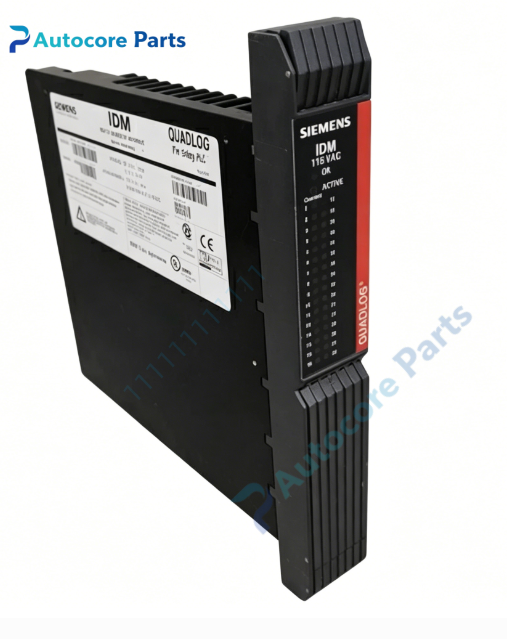

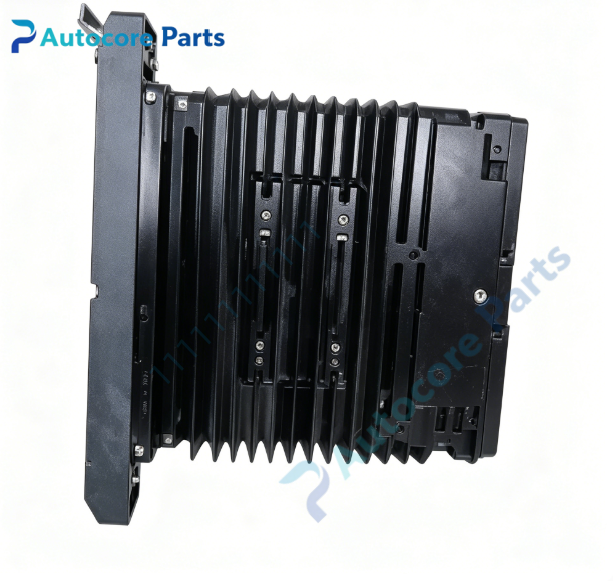

Siemens QLIDM115ACBBN Discrete Input Module

Technical SpecificationsModel:QLIDM115ACBBN (Alternate PN:16107-103/3) Brand:Siemens Product Type:IDM Discrete Input Module System:QUADLOG SIS Safety Instrumented System Backplane Power Supply:24V DC Field Signal:115VAC discrete input Mounting:MODULRAC rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.9kg Dimension:40mm260mm310mm

System compatibilityQLIDM115ACBBN belongs to Siemens Moore QUADLOG SIS safety system series. Installed in MODULRAC rack, compatible with CCM safety controller and QUADLOG safety I/O modules. It collects 115VAC field digital status signals and transmits safety data to the safety controller, supports data interconnection with APACS+ DCS system.

FunctionThis IDM discrete input module acquires 115VAC on/off status signals from field safety switches, contactors and interlock devices. It performs safety signal diagnosis, detects open circuit and short circuit faults of field wiring, and sends digital status and diagnostic information to QUADLOG safety controller via backplane safety bus. It is used for safety interlock, emergency shutdown and process safety status monitoring in SIS system.

InstallationPower off the rack chassis before installation. Insert the module into MODULRAC rack slot and lock the latch, ensure backplane connector fully engaged. Connect ribbon cable between module and marshalled termination assembly, wire 115VAC field contact signals to terminal block. Configure channel parameters through QUADLOG engineering software, verify input status reading and fault diagnosis function before online running.

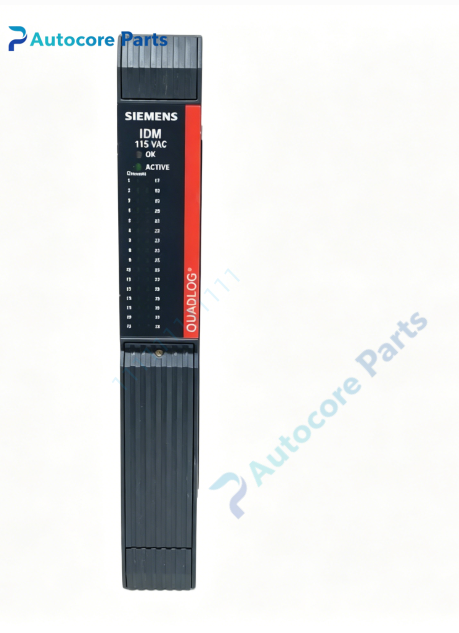

InterfaceBackplane bus connector, ribbon cable port for marshalling unit, front LED indicators for power, run, fault and individual channel status.

FeatureQUADLOG dedicated safety discrete input module, 115VAC field signal level, built-in per-channel wiring fault diagnostics, safety rated I/O, hot-swappable module, Class I Division 2 hazardous area certification. Obsolete legacy spare part, used for QUADLOG SIS safety digital input loop maintenance and replacement.

DiagnosticModule no power: check rack 24V DC power supply and backplane contact. Channel no status change: inspect field 115VAC wiring, contact status and cable breakage. Channel fault alarm: check wire short circuit, loose terminal contact and field load insulation failure.

Product BriefSiemens QLIDM115ACBBN is QUADLOG IDM 115VAC safety discrete input module, widely used in petrochemical, power and pulp & paper industries for SIS safety interlock signal acquisition.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
