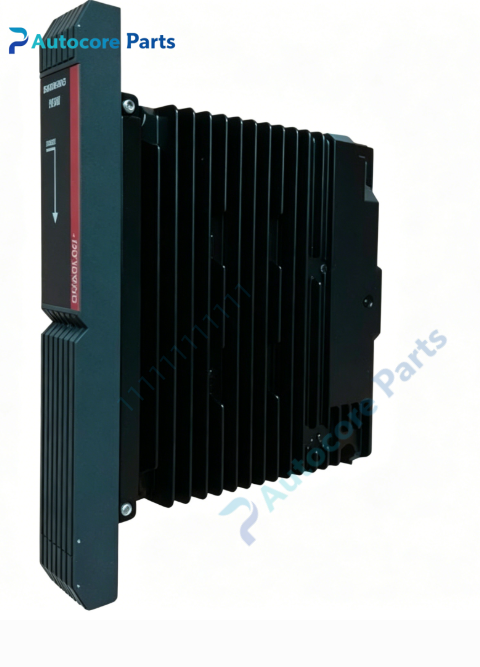

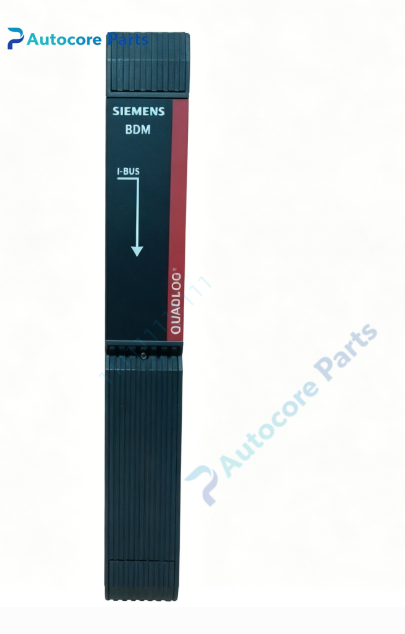

Siemens QLBDMNBN Bus Diverter Module

Technical SpecificationsModel:QLBDMNBN Brand:Siemens Product Type:QUADLOG BDM Bus Diverter Module System:QUADLOG SIS Safety Instrumented System Power Supply:24V DC backplane Mounting:MODULRAC rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:3.0kg Dimension:40mm260mm310mm

System compatibilityQLBDMNBN belongs to Siemens Moore QUADLOG SIS safety system series. Installed in MODULRAC rack, compatible with CCM safety controller and QUADLOG safety I/O modules. It supports safety bus branching for multi-rack expansion, can communicate cooperatively with APACS+ DCS.

FunctionThis BDM bus diverter module is used for QUADLOG SIS proprietary safety backplane bus splitting and signal distribution. It extends safety bus to multiple remote racks, realizes power distribution and safety data transmission between main rack and expansion I/O racks. It supports redundant safety bus architecture, ensures reliable communication for safety interlock signals in SIS system.

InstallationPower off the rack chassis before installation. Insert the module into MODULRAC rack slot and lock the latch, ensure backplane connector fully engaged. Connect dedicated safety bus extension cable between BDM and expansion rack backplane. Set rack address via DIP switch, power up and verify safety bus communication and module status after wiring.

InterfaceBackplane bus connector, external safety bus extension port, front LED indicators for power, run, fault and safety bus communication status.

FeatureQUADLOG dedicated safety bus diverter module, multi-rack safety bus expansion, redundant bus support, hot-swappable module, Class I Division 2 hazardous area certification. Obsolete legacy spare part, used for QUADLOG SIS multi-rack expansion and safety bus communication fault replacement.

DiagnosticModule no power: check rack 24V DC supply and backplane contact. Safety bus communication loss: inspect bus extension cable, DIP switch address setting and bus termination resistor. Intermittent communication: check connector oxidation, grounding interference and rack power fluctuation.

Product BriefSiemens QLBDMNBN is QUADLOG BDM safety bus diverter module, widely used in petrochemical, power and pulp & paper industries for SIS multi-rack expansion and safety interlock signal communication.
