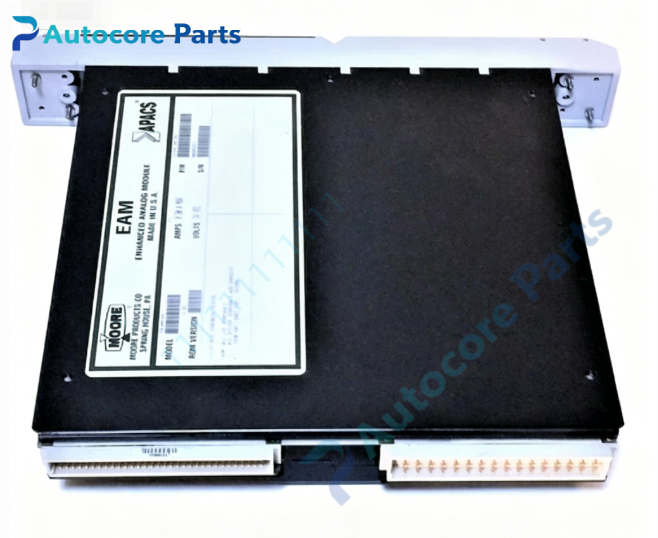

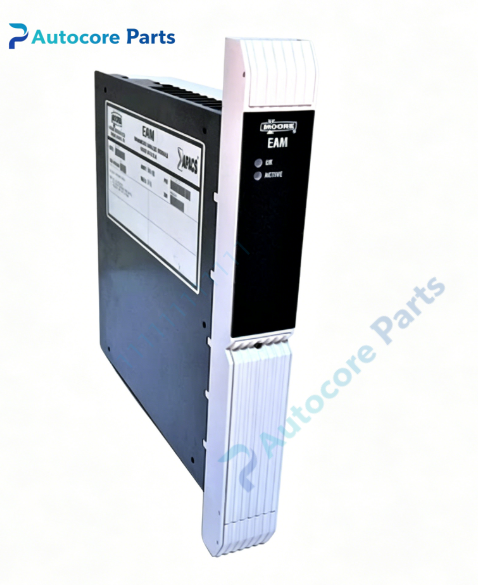

SIEMENS MOORE 16154-101/01 Enhanced Analog Module

Technical SpecificationsModel:16154-101/01 Brand:SIEMENS MOORE Product Type:EAM Enhanced Analog Module System:QUADLOG / APACS+ DCS System Power Supply:24V DC Signal Type:4-20mA analog input and output Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.84kg Dimension:35mm220mm235mm

System compatibility16154-101/01 is compatible with SIEMENS MOORE QUADLOG and APACS+ distributed control system. It installs into QUADLOG rack chassis for safety-related analog signal measurement and control output.

FunctionThis enhanced analog module acquires 4-20mA signals from field transmitters, and outputs analog control signals to positioners and control valves. It converts analog field signals to digital data for the DCS controller and converts control commands back to analog signals for field actuators, supporting safety loop monitoring and closed-loop process regulation.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Wire field instruments to matched termination assembly. Set channel range and safety parameters after power restoration.

InterfaceBackplane bus connector, ribbon cable port for marshalling terminal board, front LED channel status indicators.

FeatureSafety rated analog I/O, multi-channel isolated design, high signal resolution, built-in channel fault detection, overrange alarm. Obsolete legacy spare part, used for QUADLOG / APACS+ DCS analog loop maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel signal drift: verify field instrument loop power, wiring and channel configuration. Module fault: read diagnostic codes via QUADLOG engineering software, inspect front LED indicators.

Product BriefSIEMENS MOORE 16154-101/01 is QUADLOG EAM enhanced analog I/O module, widely used in petrochemical, power and pulp & paper industries for safety analog signal collection and valve control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
