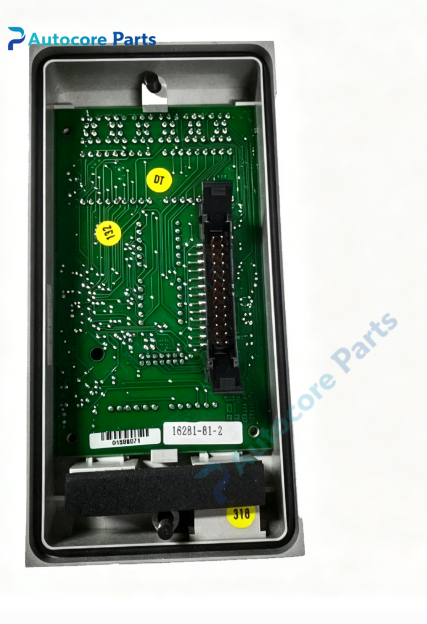

Siemens 16353-53 I/O Expander Board

Technical SpecificationsModel:16353-53 Brand:Siemens Product Type:353 I/O Expander Board Power Supply:24V DC Mounting:Internal board, installed inside Moore 353 controller housing Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.35kg Dimension:230mm60mm18mm

System compatibility16353-53 belongs to Siemens Moore 353 process automation controller series. It is an optional expansion board for Moore 353 multi-loop controller, works together with main CPU board of 353 controller, can exchange data with APACS+ DCS system.

FunctionThis I/O expander board expands the available analog and digital input/output channels of Moore 353 process controller. It increases the quantity of 4-20mA analog signals, digital inputs and relay outputs supported by the controller. It is used for expanding multi-loop PID control, additional alarm points and interlock signals, supports extra field instrument connection without adding another controller unit.

InstallationCut off controller power before installation. Open the 353 controller housing, insert the expander board into the internal dedicated connector, secure the board mounting clips. Complete wiring of extended I/O terminals. Configure expanded I/O points via controller firmware, verify channel reading and output action after power on.

InterfaceInternal edge connector to controller mainboard, screw terminal interface for extended I/O signals, channel status LED indicators.

FeatureMoore 353 dedicated I/O expansion board, expand multi-channel analog and digital I/O, plug-in internal design, easy field upgrade, supports additional PID loops and alarm functions. Obsolete legacy spare part, used for Moore 353 controller I/O expansion and maintenance replacement.

DiagnosticExpanded channels no signal: check board internal connector, 24V power supply and terminal wiring. Channel reading abnormal: verify I/O point configuration, field sensor wiring and loop resistance. Board communication fault: inspect mainboard firmware compatibility and board component aging.

Product BriefSiemens 16353-53 is Moore 353 controller I/O expander board, widely used in petrochemical, power and pulp & paper industries for expanding I/O capacity of Moore 353 multi-loop process controllers.
