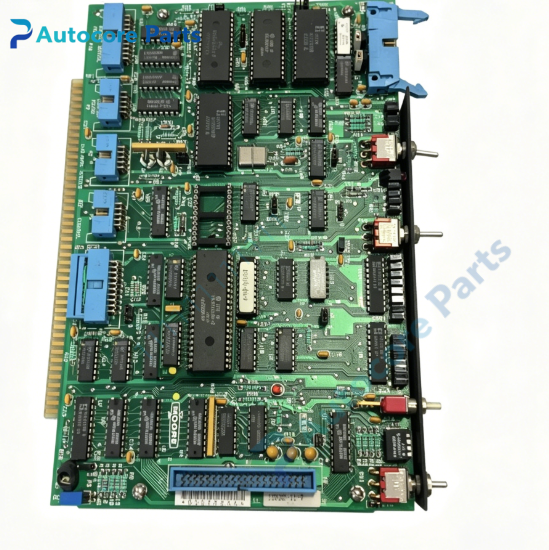

Siemens 15737-69-BCC Controller Module Assembly

Technical SpecificationsModel:15737-69-BCC Brand:Siemens Product Type:352 Controller Main Module Assembly Power Supply:120/240V AC, 50/60Hz Signal Type:4-20mA analog input and output Mounting:Panel mount, fits Moore 352 controller housing Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.45kg Dimension:40mm145mm305mm

System compatibility15737-69-BCC belongs to Siemens Moore 352 single-loop controller family. It is the core main control module for Moore 352 panel mount controller. It can work standalone for PID regulation or communicate with APACS+ DCS system, receives 4-20mA signal from field transmitters and outputs control signal to valve actuators.

FunctionThis controller module assembly is the core processing board of Moore 352 digital single loop controller. It executes PID closed-loop calculation for temperature, pressure, flow and liquid level control. It supports auto/manual switching, setpoint adjustment, high/low process alarm, cascade control function. It processes measurement input signal and generates proportional 4-20mA output to adjust control valve opening. It also handles local operator key input and display data transmission.

InstallationCut off power before installation. Insert module assembly into 352 controller enclosure and secure mounting latches. Wire AC power, analog I/O and alarm relay terminals. Configure PID parameters, alarm limits and communication settings via front panel keys, then perform loop test.

InterfaceInternal backplane connector to controller front panel, rear screw terminal block for power and analog signals, alarm relay contacts.

FeatureMoore 352 dedicated PID controller module, integrated control algorithm, auto/manual mode switching, process alarm function, pluggable module design for easy maintenance. Obsolete legacy spare part, used for Moore 352 single-loop controller repair and replacement.

DiagnosticNo power: check AC power input and terminal wiring. Control deviation large: verify input signal integrity, re-tune PID parameters. Alarm not reset: check alarm threshold setup and field process condition.

Product BriefSiemens 15737-69-BCC is Moore 352 series single loop PID controller main module assembly, widely used in petrochemical, power and pulp & paper industries for independent process loop PID control.
