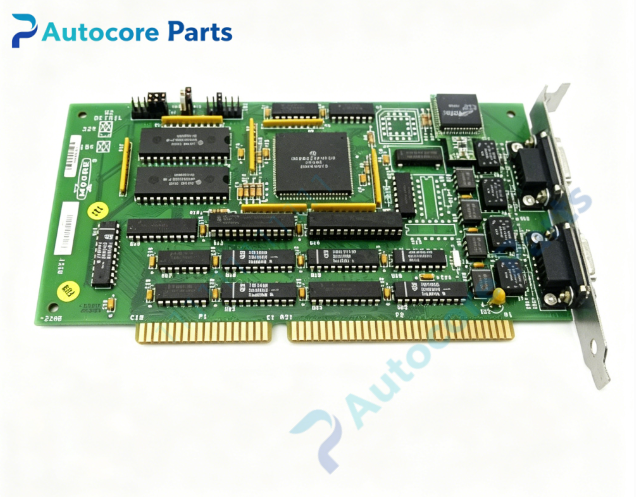

SIEMENS MOORE 16249-51/6 MBI M-BUS Interface Card

Technical SpecificationsModel:16249-51/6 Brand:SIEMENS MOORE Product Type:MBI M-BUS ISA Interface Card System:APACS+ DCS System Power Supply:5V / 12V DC from ISA slot Mounting:PC ISA slot installation Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.35kg Dimension:120mm220mm20mm

System compatibility16249-51/6 is compatible with SIEMENS MOORE APACS+ distributed control system. It is an ISA bus MBI adapter card installed in engineering workstation PC, used to connect workstation and APACS+ controller rack over MNET M-BUS network.

FunctionThis MBI M-BUS interface board realizes MNET protocol conversion between PC workstation and APACS+ DCS rack. It uploads real-time process variables, alarm information and controller status; downloads control configuration, parameter modification to DCS controllers. It supports online monitoring, program editing, system diagnosis for APACS+ system.

InstallationPower off industrial workstation before installation. Insert the card into PC ISA slot and secure bracket. Connect M-BUS communication cable between card and DCS rack. Set hardware jumper address, install driver and APACS engineering software after power on.

InterfaceISA gold finger connector, M-BUS/MNET communication port, board status LED indicators.

FeatureISA slot MBI M-BUS interface, reliable MNET bus communication, on-board communication fault diagnosis, galvanic signal isolation, used for APACS engineering workstation connection. Obsolete legacy spare part, used for APACS+ DCS workstation communication board maintenance and replacement.

DiagnosticCard not recognized: check ISA slot contact, jumper address and PC hardware resource conflict. Communication offline: inspect M-BUS cable, terminal resistor and station address setting. Abnormal LED: check on-board power and hardware circuit.

Product BriefSIEMENS MOORE 16249-51/6 is APACS+ series MBI M-BUS ISA interface card, widely used in petrochemical, power and pulp & paper industries for engineering workstation connecting with APACS DCS control racks.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
