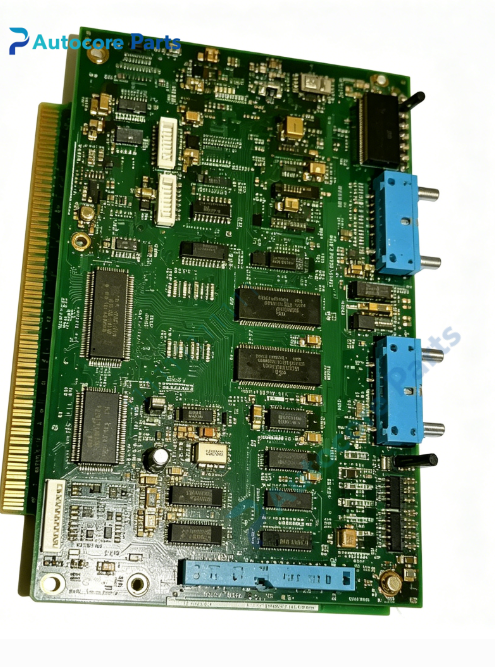

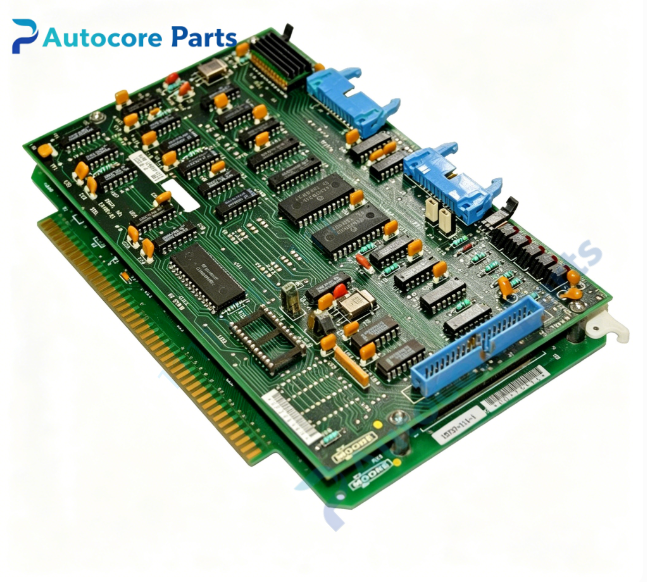

SIEMENS MOORE 15737-114-1 Integrated Control Card

Technical SpecificationsModel:15737-114-1 Brand:SIEMENS MOORE Product Type:ICC Integrated Control Card System:APACS+ DCS System Power Supply:24V DC Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.92kg Dimension:35mm220mm235mm

System compatibility15737-114-1 is compatible with SIEMENS MOORE APACS+ distributed control system. It installs in APACS rack chassis as main processor board, works with APACS analog and discrete I/O modules.

FunctionThis ICC integrated control card executes PID closed-loop control, sequence logic and arithmetic calculation. It communicates with I/O modules via backplane bus, collects field process signals and outputs control commands to regulate temperature, pressure, flow and liquid level. It supports complex control formulas and local alarm management for process loops.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Set hardware address and download control configuration after power restoration.

InterfaceBackplane bus connector, front LED status indicators for power, run and fault.

FeatureIntegrated control processor, built-in control algorithm library, watchdog protection, on-board fault self-diagnosis, isolated backplane circuit. Obsolete legacy spare part, used for APACS+ DCS controller maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Module fault: read diagnostic information via APACS configuration software, check front LED indicators. Communication error: inspect backplane bus connection and slot address setting.

Product BriefSIEMENS MOORE 15737-114-1 is APACS+ series ICC integrated control processor card, widely used in petrochemical, power and pulp & paper industries for process closed-loop control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
