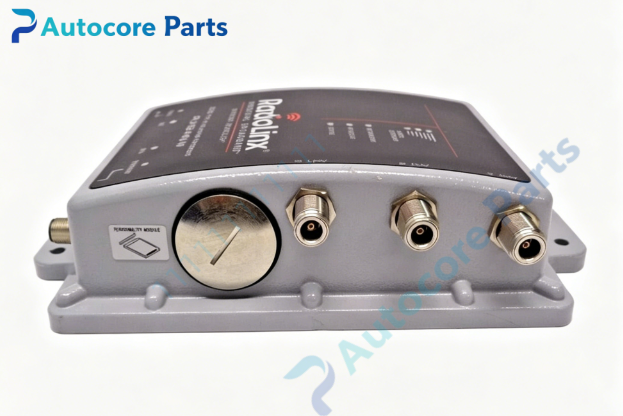

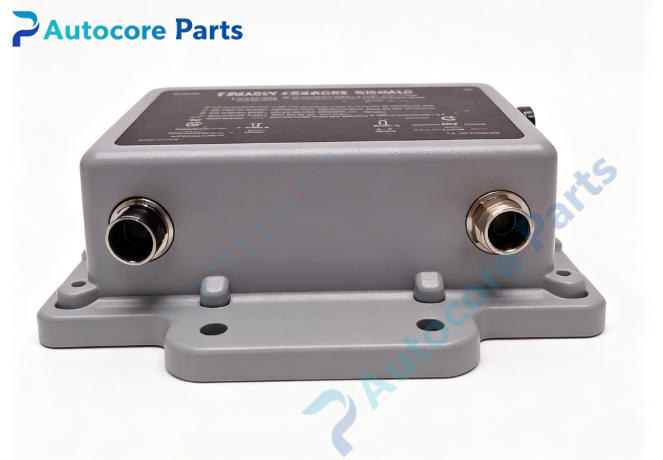

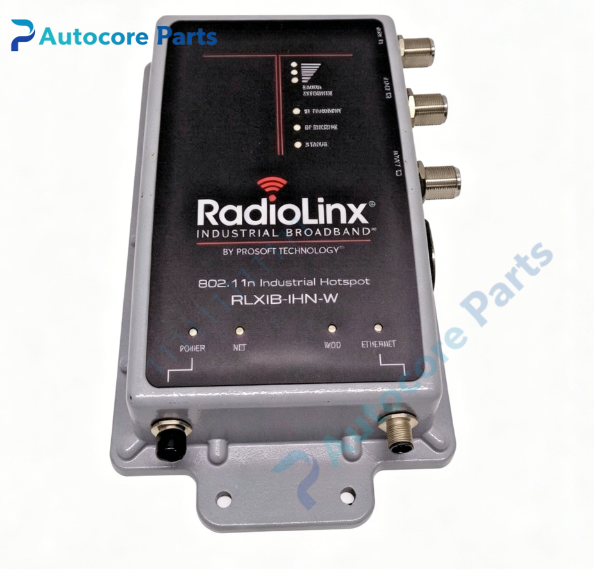

ProSoft RLXIB-IHN-W-E RadioLinx Weatherproof 802.11n Industrial Hotspot

Technical Specifications

Model:RLXIB-IHN-W-E

Brand:ProSoft

Product type:RadioLinx IP67 Weatherproof 802.11n Industrial Wi-Fi Hotspot,ETSI regional version

Power supply:10~24VDC,support 802.3af PoE

Radio frequency:2.4GHz & 5GHz dual band,ETSI channel plan,support DFS radar detection

Wireless rate:max 300Mbps,MIMO 22

Communication interface:210/100Mbps M12 Ethernet port,1RS232 serial port,3N-type antenna ports

Roaming switchover:<10ms

Protection grade:IP67

Weight:2.0kg

Operating temperature:-40℃ ~ +75℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~100%RH,non-condensing

Dimension:260mm165mm68mm

Certification:CE,UL,Class I Division2,ATEX Zone2

System compatibility

RLXIB-IHN-W-E belongs to ProSoft legacy RadioLinx RLXIB series outdoor waterproof industrial Wi-Fi hotspot.

Supports Access Point,Client,Repeater three working modes.

Compatible with Rockwell,Schneider,Siemens PLC,support EtherNet/IP,Modbus TCP industrial Ethernet communication.

Can intercommunicate with RLXIB and RLX2 series wireless radios.

Suitable for oil pipeline,port crane,water plant,mining site,outdoor SCADA wireless network renovation and spare replacement.

Function

Dual band 802.11n MIMO wireless technology,supports high-speed industrial control data transmission.

Ultra-fast roaming less than 10ms,realize seamless handover for moving automation equipment.

Built-in EtherNet/IP object and Modbus agent,radio diagnostic data can be directly read by PLC.

WPA2 AES encryption,MAC filtering,RADIUS authentication and VLAN for industrial network security isolation.

QoS and IGMP snooping function,optimize EtherNet/IP multicast I/O traffic.

IH Browser software for network topology view,IP allocation,online diagnosis and firmware upgrade.

Supports SNMP and OPC diagnostic server for centralized wireless network monitoring.

Transparent wireless bridge for industrial Ethernet and RS232 serial data transmission.

SD card slot for configuration backup and quick device replacement.

Installation

Mount module on wall or pole bracket,power supply via DC terminal or 802.3af PoE.

Install matched outdoor antennas on N-type ports,add surge lightning protection for long antenna cable.

Connect M12 Ethernet cable to PLC or industrial switch,serial port for optional serial field equipment.

Set working mode,SSID and security parameters via IH Browser software.

Check wireless signal strength and LED indicators after power-on.

Interface

210/100Mbps M12 Ethernet port,1RS232 terminal port,3*N-type antenna connectors,power terminal,SD card slot,LED indicators:PWR,WLAN,COM,NET.

Feature

IP67 cast aluminum waterproof enclosure,dustproof and moistureproof for outdoor harsh environments.

10ms ultra-fast roaming,meets real-time control requirement of mobile automation equipment.

Dual band optional,reduce 2.4GHz frequency band electromagnetic interference.

Built-in web server for local configuration and equipment status monitoring.

Support configuration backup by SD card,fast on-site replacement.

Shock and vibration resistant design,stable operation in offshore,mining and field cabinet environment.

Diagnostic

Check module power and WLAN LED;communication failure:check antenna,cable and channel interference;data abnormal:verify SSID,encryption setting and roaming parameter.

Product Brief

RLXIB-IHN-W-E is ProSoft legacy RadioLinx RLXIB series IP67 outdoor waterproof fast industrial Wi-Fi hotspot,ETSI version.

It provides low latency and high reliability outdoor wireless communication for offshore,mining and field SCADA system,widely applied in EtherNet/IP industrial wireless system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
