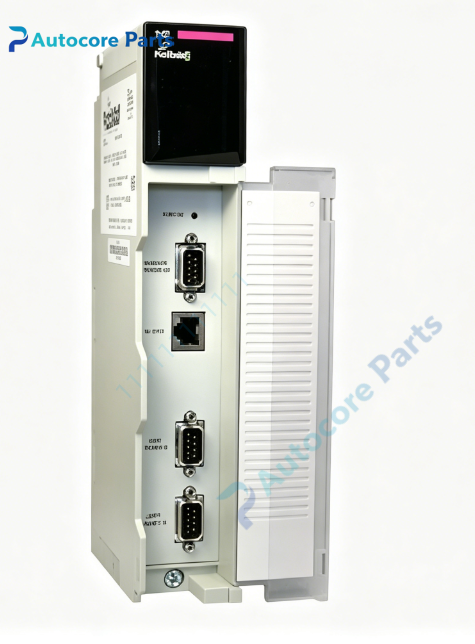

ProSoft PTQ-104C Quantum IEC60870-5-104 Client Communication Module

Technical Specifications

Model:PTQ-104C

Brand:ProSoft

Product type:Schneider Quantum Chassis IEC 60870-5-104 Client Communication Module

Backplane power:1100mA @5VDC

Communication:110/100Mbps Ethernet RJ45 for IEC60870-5-104;DB9 RS232 configuration debug port

Max connection:support up to 4 IEC60870-5-104 server sessions

Weight:0.42kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Quantum single slot module,140mm42mm*112mm

Certification:CE,UL,Class I Division2

System compatibility

PTQ-104C belongs to ProSoft PTQ series in-rack communication module.

It is installed in Schneider Quantum PLC chassis,data exchange with Quantum CPU via Quantum backplane.

It works as IEC60870-5-104 client to connect substation IED,protection relays and power monitoring equipment.

Supports Unity Pro hot standby redundant architecture,also compatible with Concept,ProWORX programming software.

Suitable for power substation,utility telecontrol system renovation and spare replacement.

Function

IEC60870-5-104 client module,supports ASDU telecontrol message,time stamped event and quality tag.

Supports single point,double point,measured value,setpoint control command and exception transmission.

Internal point database maps IEC104 telecontrol data to Quantum PLC register.

ProSoft Configuration Builder software for network setup,point list definition and online diagnosis.

Supports hot standby redundancy for high availability power automation system.

Bidirectional data exchange between Quantum PAC and IEC60870-5-104 server field devices.

Installation

Insert module into empty slot of Schneider Quantum chassis.

Connect RJ45 ethernet cable to substation IED network,DB9 RS232 port to PC for configuration.

Set static IP address and IEC104 session parameters in configuration software,download project to module flash.

Configure data mapping in Unity Pro or Concept,check LED indicators after power-up.

Interface

110/100Mbps Ethernet RJ45 port,1DB9 RS232 debug port,Quantum backplane connector,LED indicators:PWR,FLT,COM,NET.

Feature

Quantum single slot rack-mounted design,directly integrated into Quantum rack.

Support up to 4 independent IEC104 server connections for multi-IED collection.

Event time stamp and data quality flag for power telecontrol application.

Support hot standby redundant configuration for uninterrupted substation control.

Online point monitoring and diagnostic function for convenient commissioning.

Shock and vibration resistant design,stable operation in power cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and firewall setting;data abnormal:check ASDU point address and register mapping table.

Product Brief

PTQ-104C is ProSoft PTQ series in-chassis IEC60870-5-104 client module for Schneider Quantum PAC.

It collects telemetry and alarm data from substation IEDs via IEC104 Ethernet protocol,widely used for power substation automation system maintenance and transformation.
