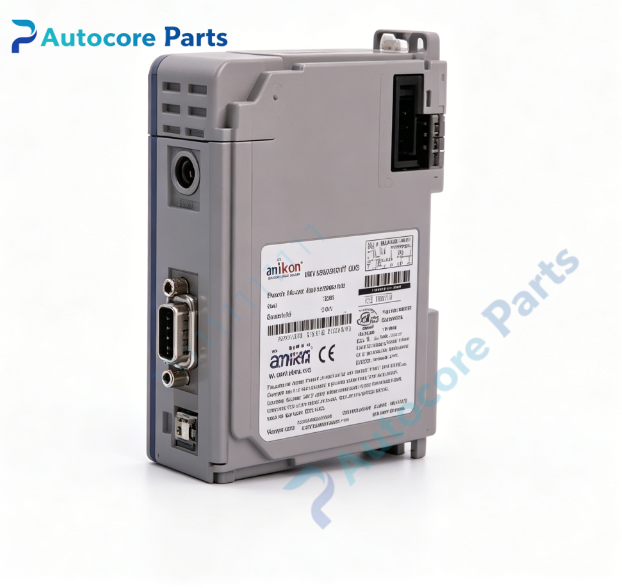

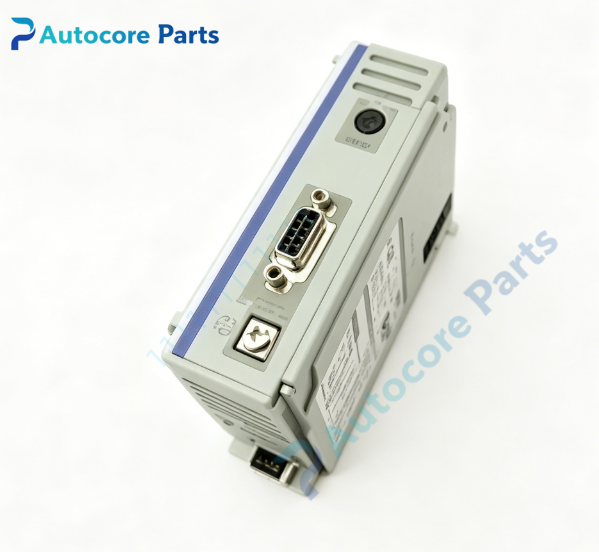

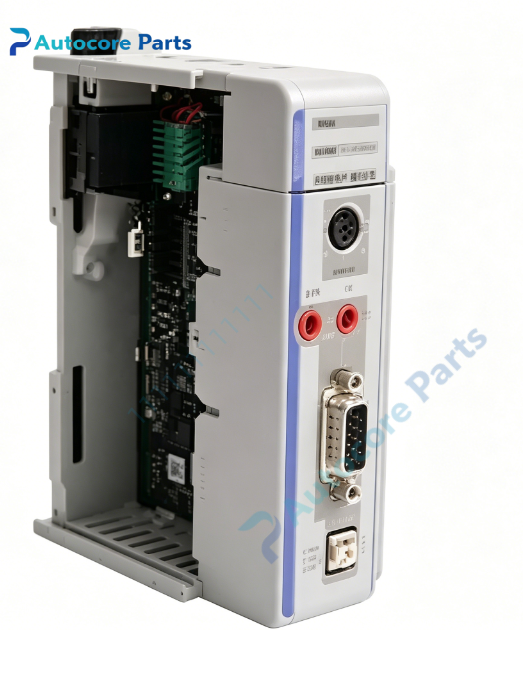

ProSoft PS69-DPM CompactLogix PROFIBUS DP DPV1 Master Module

Technical Specifications

Model:PS69-DPM

Brand:ProSoft

Product type:1769 CompactLogix Chassis PROFIBUS DP DPV1 Master Communication Module

Backplane power:260mA @5VDC

Communication:PROFIBUS DP RS485 interface,max 12MBaud;PS/2 RS232 diagnostic port

Max slave quantity:125 nodes

Input data:max 408 bytes

Output data:max 480 bytes

Weight:0.28kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:1769 single slot module,104mm35mm88mm

Certification:CE,UL,Class I Division2,PROFIBUS certified

System compatibility

PS69-DPM belongs to ProSoft PS69 series in-rack communication module.

It installs into Rockwell 1769 CompactLogix chassis,also compatible with MicroLogix1500 LRP processor,data exchange with controller via 1769 backplane.

It acts as PROFIBUS DP master to connect PROFIBUS drives,remote IED,remote I/O and field instruments.

Suitable for factory automation,water treatment,legacy PROFIBUS system renovation and spare replacement.

Function

PROFIBUS DP DPV0/DPV1 master module,supports cyclic real-time I/O data and acyclic DPV1 messaging.

Supports Sync/Freeze function,slave diagnosis,parameter read/write and alarm service.

Configure network scan list via PROSOFT.fdt FDT/DTM tool,configuration saved in module flash memory.

Treat as standard I/O module in RSLogix5000,data mapped via controller I/O image.

Comes with sample ladder logic for quick commissioning.

Bidirectional data exchange between CompactLogix controller and PROFIBUS DP field network.

Installation

Insert module into empty slot of 1769 CompactLogix chassis.

Wire PROFIBUS RS485 bus cable,install terminal resistor at bus endpoints.

Connect RS232 diagnostic port to PC for network configuration with PROSOFT.fdt.

Add module in RSLogix5000,download project,check LED indicators after power-up.

Interface

1PROFIBUS RS485 terminal port,1PS/2 RS232 diagnostic port,1769 backplane connector,LED indicators:PWR,FLT,NET,COM.

Feature

1769 single slot compact rack-mounted design,hot-swap supported for qualified chassis.

PROFIBUS certified master interface,supports wide baud rate selection.

FDT/DTM configuration tool,convenient for slave parameter setting and network diagnosis.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify PROFIBUS wiring,bus terminal resistor and baud rate;data abnormal:check GSD file and I/O mapping table.

Product Brief

PS69-DPM is ProSoft PS69 series in-chassis PROFIBUS DP DPV1 master module for Rockwell CompactLogix 1769 rack.

It enables CompactLogix controller to communicate with PROFIBUS DP field devices,widely used for industrial automation PROFIBUS network maintenance and transformation.
