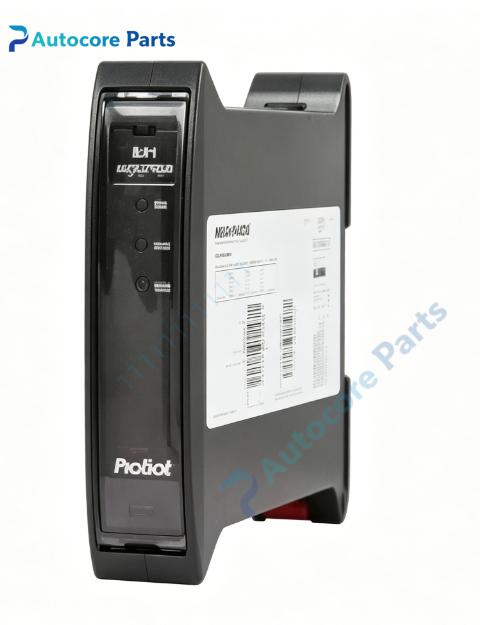

ProSoft PLX51-DF1-ENI DF1 to EtherNet/IP Router

Technical Specifications

Model:PLX51-DF1-ENI

Brand:ProSoft

Product type:DF1 Serial to EtherNet/IP Standalone Routing Gateway

Power supply:10~28VDC

EtherNet/IP:110/100Mbps RJ45,max 10 CIP connections,max 20 TCP connections

DF1 serial port:RS232,DF1 Full Duplex / Half Duplex / Radio Modem

Baud rate:1200,2400,4800,9600,19200,38400,57600,115200

Check mode:BCC,CRC

Data bit:8,stop bit:1,parity:None / Even / Odd

Weight:0.38kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm22.5mm*111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX51-DF1-ENI belongs to ProSoft PLX51 series standalone routing module.

Realize data interconnection between Rockwell DF1 legacy PLC and EtherNet/IP Logix controllers.

Compatible with PLC-5,SLC500,MicroLogix and ControlLogix,CompactLogix series.

It can be used as substitute for discontinued 1761-NET-ENI module.

Suitable for old factory renovation,legacy PLC program upload/download,HMI upgrade,system migration and spare replacement.

Function

Intelligent bidirectional routing between DF1 serial protocol and EtherNet/IP CIP.

Support four operation modes:bridge mode,scheduled,unscheduled,DF1 slave mode.

Realize PLC program upload and download between DF1 equipment and EtherNet/IP controller.

Built-in DF1 packet analyzer for serial communication troubleshooting.

Direct-to-tag technology simplify data mapping and reduce configuration time.

Support redundant ControlLogix system.

Web page configuration and online diagnostic function.

Installation

Mount gateway on DIN rail,connect 10~28VDC power supply.

Connect RS232 serial cable to DF1 PLC,connect RJ45 port to EtherNet/IP network.

Set DF1 baud rate,parity and communication mode via web configuration page.

Configure routing and tag mapping parameters.

Check LED indicators after power-on.

Interface

110/100Mbps Ethernet RJ45,1RS232 terminal port,power terminal,LED indicators:PWR,ERR,COM,NET.

Feature

Compact thin DIN rail module,save cabinet installation space.

Direct replacement for 1761-NET-ENI,low risk for old system upgrade.

Support remote programming of legacy DF1 PLC through EtherNet/IP network.

Built-in serial packet capture function,easy to locate DF1 communication faults.

Configuration lock switch to prevent parameter accidental modification.

Shock and vibration resistant design,stable operation in industrial cabinet.

Diagnostic

Check PWR and communication LED;communication failure:check serial wiring,baud rate and parity setting;data abnormal:verify EtherNet/IP path and tag mapping configuration.

Product Brief

PLX51-DF1-ENI is ProSoft PLX51 series DF1 serial to EtherNet/IP routing gateway.

It connects Rockwell legacy DF1 PLC with modern EtherNet/IP control system,support PLC remote programming and data exchange,widely used in old automation system migration transformation.
