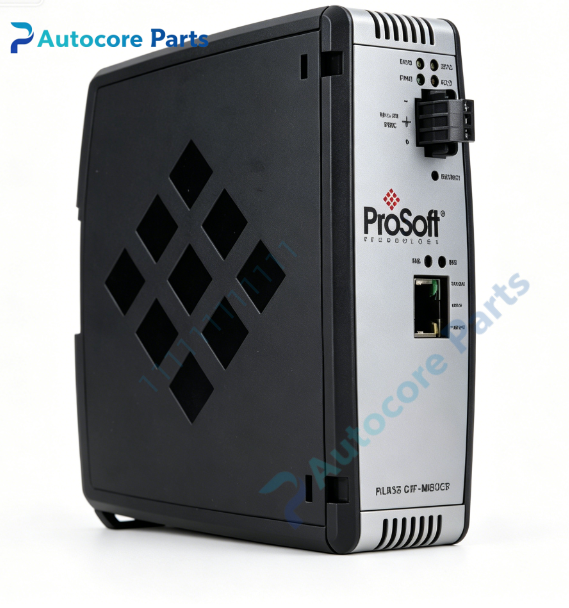

ProSoft PLX31-MBTCP-PND Modbus TCP to PROFINET IO Device Gateway

Technical Specifications

Model:PLX31-MBTCP-PND

Brand:ProSoft

Product type:Modbus TCP to PROFINET IO Device Standalone Protocol Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

Ethernet:110/100Mbps RJ45,1500Vrms isolation

Modbus TCP:support 10 clients,5 servers,standard Modbus function codes

PROFINET:Class A IO Device,RT real-time communication,max 1440 bytes input /1440 bytes output

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2,PROFINET v2 certified

System compatibility

PLX31-MBTCP-PND belongs to ProSoft PLX31 series standalone protocol gateway.

Act as PROFINET IO Device on PROFINET side,realize interconnection between Siemens PROFINET controllers and Modbus TCP network devices.

Compatible with Siemens S7-1200,S7-1500,S7-300 PN PLC,flow meter,power meter,temperature transmitter and other Modbus TCP field instruments.

Suitable for water treatment,petrochemical,power plant,automation production line cross protocol network integration renovation and spare replacement.

Function

Bidirectional protocol conversion between Modbus TCP and PROFINET RT.

Support cyclic real-time I/O data and acyclic message communication.

Simultaneous multiple Modbus TCP client and server connections,up to 160 configurable read/write commands.

GSDML file provided for quick integration in Siemens TIA Portal.

SD card slot for configuration backup and quick module replacement.

ProSoft Configuration Builder(PCB)software for parameter setting,online diagnosis and firmware upgrade.

Flexible register mapping,individually enable/disable polling commands,support write-on-data-change.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect Ethernet cable to shared network for both Modbus TCP and PROFINET communication.

Import GSDML file into TIA Portal,configure PROFINET device name and I/O area.

Set Modbus TCP client/server and register mapping via PCB software.

Check LED indicators after power-on.

Interface

1*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,FLT,NS.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

PROFINET Class A certified,stable real-time I/O transmission.

Support abundant Modbus function codes,adapt to various Modbus TCP field equipment.

SD card stores full configuration,fast on-site replacement without re-programming.

Dual protocol online diagnostic function,view communication error and link status remotely.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP address and PROFINET device name;data abnormal:check Modbus polling command and register mapping configuration.

Product Brief

PLX31-MBTCP-PND is ProSoft PLX31 series Modbus TCP to PROFINET IO device protocol gateway.

It bridges Siemens PROFINET PLC and Modbus TCP field instruments,widely used in industrial cross-protocol system integration transformation.
