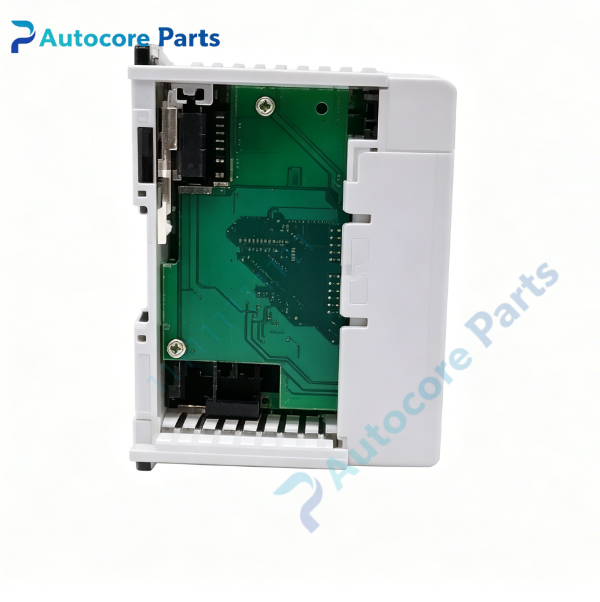

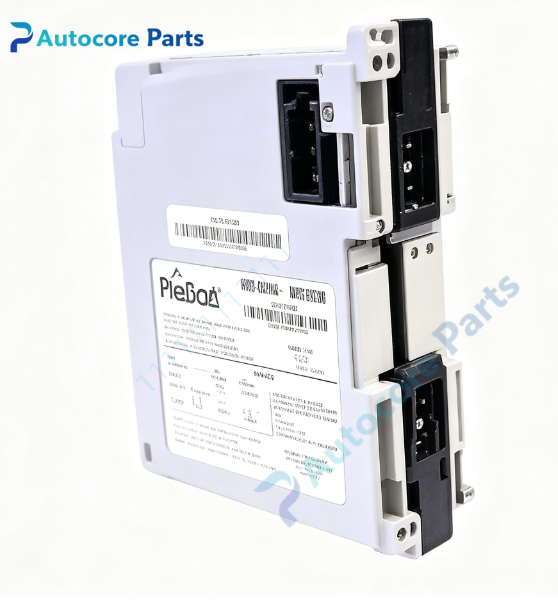

ProSoft MVI69-DFNT CLX DFNT Module

Technical Specifications

Model:MVI69-DFNT

Brand:ProSoft

Product type:CompactLogix In-Chassis EtherNet/IP Client/Server Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:EtherNet/IP,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-DFNT belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It realizes data communication between CompactLogix and other EtherNet/IP network devices.

Suitable for multi-brand EtherNet/IP control system renovation and spare replacement.

Function

It works as EtherNet/IP client and server simultaneously.

Client supports up to 100 user-defined communication commands.

Server supports up to 20 independent network connections for remote device access.

Built-in 4000 words 16-bit register database for data exchange.

Data mapped to CompactLogix controller memory via backplane,supports explicit messaging.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set IP address and configure EtherNet/IP command list via ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

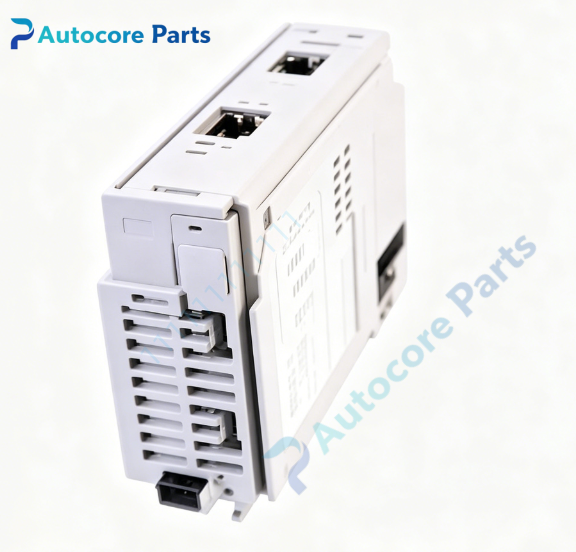

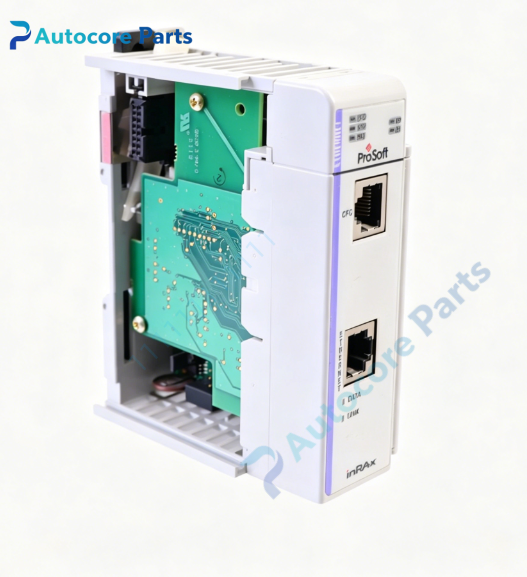

110/100Mbps Ethernet RJ45 port,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,network activity LED indicators.

Feature

Single slot 1769 chassis design,1500V isolation between backplane and ethernet port.

Auto crossover ethernet detection,web diagnostic interface.

Supports user-defined memory allocation,configurable communication timeout parameters.

Stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and network route;data abnormal:check EtherNet/IP command list and register mapping table.

Product Brief

MVI69-DFNT is ProSoft MVI69 series EtherNet/IP client/server communication module for CompactLogix rack.

It serves as EtherNet/IP gateway to realize bidirectional data exchange between CompactLogix and EtherNet/IP field controllers,for industrial automation system maintenance and transformation.
