ProSoft MVI69-ADMNET CLX ADMNET Module

Technical Specifications

Model:MVI69-ADMNET

Brand:ProSoft

Product type:CompactLogix In-Chassis C Language Programmable Ethernet Application Development Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:10/100Mbps Ethernet port

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-ADMNET belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It allows users to develop custom ethernet communication protocols and data logic with C language.

Suitable for non-standard ethernet protocol conversion and customized automation system renovation and spare replacement.

Function

It is a C programmable embedded ethernet development module,equipped with dedicated backplane API and ethernet socket API library.

Single 10/100Mbps ethernet port,supports TCP/UDP socket programming.

Users compile custom program to realize private ethernet protocol,data filtering and special network device communication.

Data mapped to CompactLogix controller memory via backplane,flexible register data exchange.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set IP address,compile and download custom C application program.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

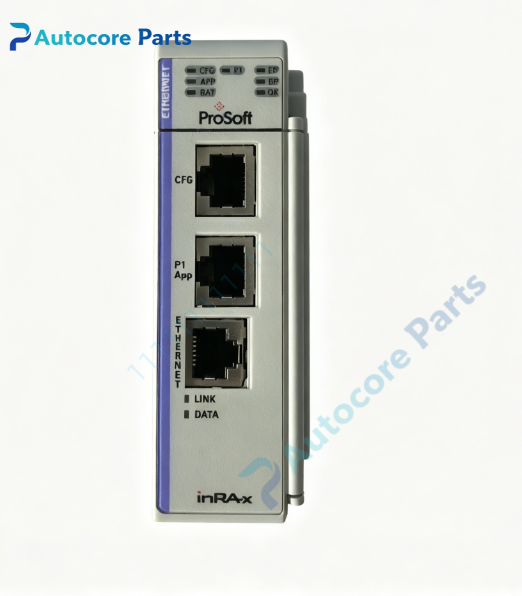

110/100Mbps Ethernet RJ45 port,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,application and network activity LED indicators.

Feature

Single slot 1769 chassis design,auto crossover ethernet detection.

Complete C development toolchain and sample source code provided.

Supports custom TCP/UDP server/client development,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and network route;data abnormal:check custom application program and backplane data mapping.

Product Brief

MVI69-ADMNET is ProSoft MVI69 series C programmable ethernet application development module for CompactLogix rack.

It supports user custom C program development to implement non-standard ethernet protocols and network data processing,for industrial automation system maintenance and transformation.
