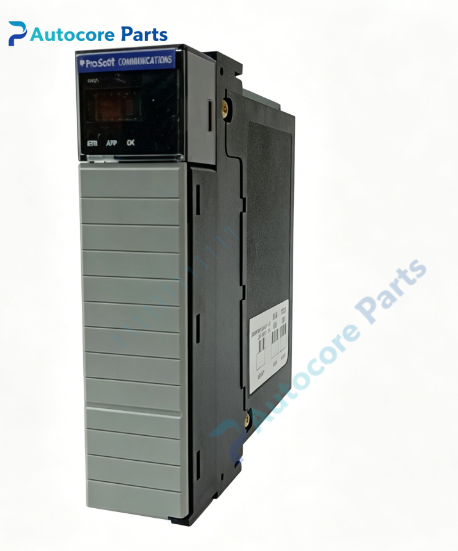

ProSoft MVI56E-MNETC CLX MNETC Module

Technical Specifications

Model:MVI56E-MNETC

Brand:ProSoft

Product type:ControlLogix In-Chassis Enhanced Modbus TCP Client Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:Modbus TCP/IP,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-MNETC belongs to ProSoft MVI56E enhanced series module.

It plugs directly into Rockwell ControlLogix 1756 rack,compatible with ControlLogix PAC controllers,backward compatible with legacy MVI56-MNETC.

Suitable for polling Modbus TCP server field devices,industrial system renovation and spare replacement.

Function

It works as Modbus TCP client,supports multiple concurrent TCP connections.

It can read and write data from remote Modbus TCP server devices.

Supports up to 5000 16-bit user registers for data exchange.

Data mapped to ControlLogix controller memory via backplane,supports Ethernet pass-through function.

Installation

Insert module into ControlLogix chassis backplane,connect Ethernet cable.

Set IP address and configure Modbus command list via ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

1*10/100Mbps Ethernet RJ45 port,CF card slot,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,auto crossover ethernet detection.

Web diagnostic interface,CIPconnect remote diagnostic support,supports RIUP hot swap.

CF card for configuration backup,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify Ethernet cable,IP address and network route;data abnormal:check Modbus TCP command list and register mapping table.
