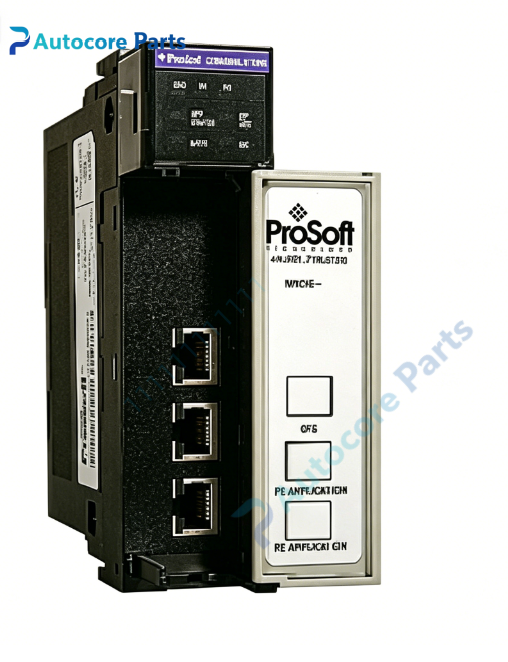

ProSoft MVI56-BSAPS CLX BSAPS Module

Technical Specifications

Model:MVI56-BSAPS

Brand:ProSoft

Product type:ControlLogix In-Chassis Bristol Babcock Serial Slave Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:Bristol Babcock serial protocol,RS232/RS422/RS485

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56-BSAPS belongs to ProSoft MVI56 series module.It plugs directly into Rockwell ControlLogix 1756 rack,enables ControlLogix to act as Bristol Babcock serial slave node,suitable for connecting ControlLogix system to legacy Bristol Babcock DCS,old industrial system renovation and spare replacement.

Function

It works as Bristol Babcock serial slave,supports analog,digital and string data point configuration,point quantity up to 300 groups.Realizes bidirectional data exchange between ControlLogix and Bristol Babcock master device.Data mapped to ControlLogix controller memory via backplane,supports configurable baud rate,parity and response delay.

Installation

Insert module into ControlLogix chassis backplane,wire RS232/422/485 serial bus,select interface mode via jumpers,configure point list and communication parameters via ProSoft Configuration Builder,download project through RSLinx,check LED indicators after power-up.

Interface

2*RJ45 serial application ports,RJ45 configuration port,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,serial ports with galvanic isolation,flexible serial parameter configuration,supports large quantity signal points,web diagnostic interface,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,slave address and baud rate;data abnormal:check point list configuration and signal mapping table.

Product Brief

MVI56-BSAPS is ProSoft MVI56 series Bristol Babcock serial slave communication module for ControlLogix rack.It connects Rockwell ControlLogix controller with legacy Bristol Babcock DCS host,for industrial automation system maintenance and transformation.
