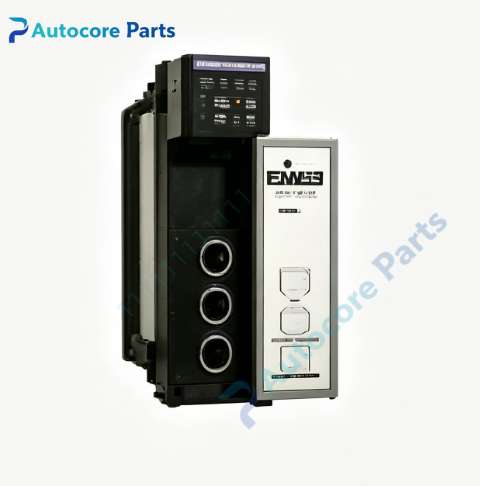

ProSoft MVI56-103M CLX IEC103 Module

Technical Specifications

Model:MVI56-103M

Brand:ProSoft

Product type:ControlLogix In-Chassis IEC 103 Master Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:IEC 60870-5-103,RS232/RS485 serial interface

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56-103M belongs to ProSoft MVI56 series module.It plugs directly into Rockwell ControlLogix 1756 rack,enables ControlLogix controller to communicate with IEC103 protection relays and fault recorders,widely used in power plant and substation automation system upgrade and spare replacement.

Function

It acts as IEC 60870-5-103 master station,realizes real-time data acquisition,event alarm and fault signal recording from substation protection devices.Supports time-stamped event data.Data is mapped to ControlLogix controller memory via backplane.

Installation

Insert module into ControlLogix chassis backplane,connect RS485/RS232 serial cable to protection relays,configure IEC103 station parameters and data mapping via ProSoft Configuration Builder,download project through RSLinx,check LED indicators after power-up.

Interface

2*RJ45 serial application ports,RJ45 configuration port,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,serial ports with galvanic isolation,supports multiple IEC103 slave nodes,event timestamp capture,web diagnostic interface,stable operation in power cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,station address and baud rate;data abnormal:check IEC103 parameter configuration and data mapping table.

Product Brief

MVI56-103M is ProSoft MVI56 series IEC 103 master communication module for ControlLogix rack.It connects Rockwell ControlLogix controller with IEC103 substation protection equipment,for power industrial automation system maintenance and transformation.
