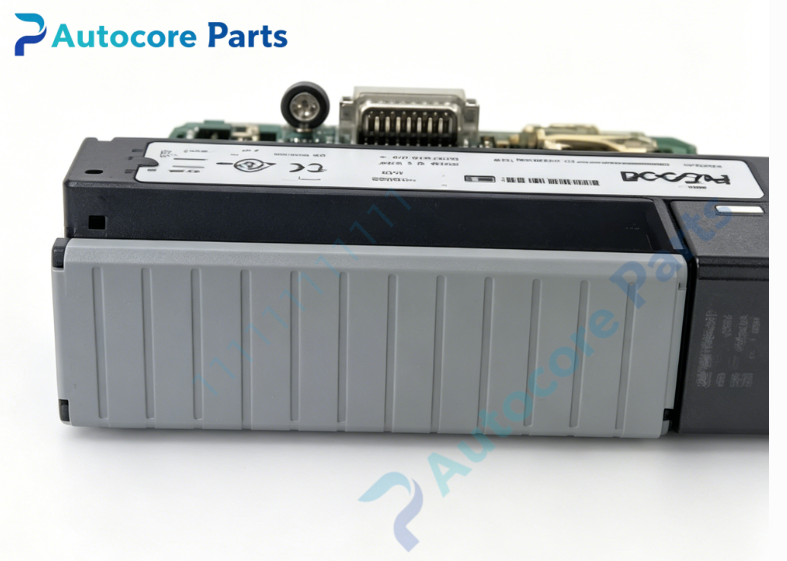

ProSoft MVI46-DFCM SLC500 DF1 Module

Technical Specifications

Model:MVI46-DFCM

Brand:ProSoft

Product type:SLC500 In-Chassis DF1 Communication Module

Power supply:Supplied via SLC500 backplane,800mA @5VDC

Communication:DF1 protocol,RS232/RS485 serial interface

Weight:0.27kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard SLC500 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI46-DFCM belongs to ProSoft MVI46 series module.It plugs directly into Rockwell SLC500 rack,enables SLC500 PLC to communicate with DF1 compatible controllers and serial devices,suitable for legacy Rockwell system upgrade and spare replacement.

Function

It supports DF1 master and slave mode,realizes bidirectional serial data exchange between SLC500 and DF1 devices.Data is mapped to SLC500 controller memory via backplane,supports full DF1 protocol functions for reading and writing PLC data tables.

Installation

Insert module into SLC500 chassis backplane,connect RS485/RS232 serial cable,configure DF1 station parameters and data mapping via ProSoft Configuration Builder,download project through RSLinx,check LED indicators after power-up.

Interface

2*RJ45 serial application ports,RJ45 configuration port,SLC500 backplane connector,module status,application and serial communication LED indicators.

Feature

Single slot SLC500 chassis design,supports full duplex and half duplex communication,configurable baud rate,web diagnostic interface,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,station address and baud rate;data abnormal:check DF1 parameter configuration and data mapping table.

Product Brief

MVI46-DFCM is ProSoft MVI46 series DF1 serial communication module for SLC500 rack.It connects Rockwell SLC500 controller with DF1 serial devices,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and renovation.
