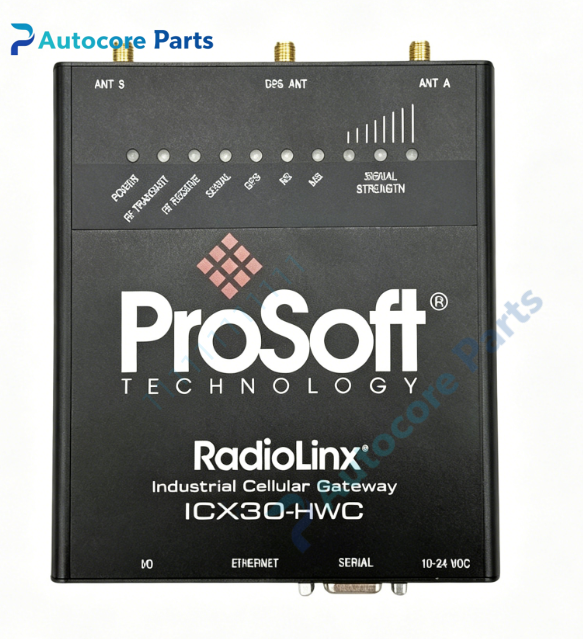

ProSoft ICX30-HWC 3G Industrial Cellular Gateway with GPS

Technical Specifications

Model:ICX30-HWC

Brand:ProSoft

Product type:Industrial Cellular Gateway

Power supply:10-24VDC

Communication:3G GSM/CDMA/WCDMA/HSPA+,Ethernet,RS232/485 serial

Weight:0.38kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL,FCC

System compatibility

ICX30-HWC belongs to ProSoft RadioLinx series cellular gateway.It connects remote PLC,RTU,DCS and field instruments via 3G cellular network,suitable for remote unmanned site SCADA data collection,remote equipment maintenance and M2M applications.

Function

It establishes secure VPN tunnel for remote site network access,supports Modbus and DF1 serial encapsulation,integrated GPS for location monitoring.Built-in discrete and analog I/O for alarm monitoring,supports EtherNet/IP Class3 communication to exchange diagnostic data with Rockwell controllers.

Installation

DIN rail mounting,install SIM card and cellular antenna,connect 10-24VDC power,wire Ethernet and serial terminals,configure VPN and network parameters via built-in web page,check LED indicators.

Interface

1*10/100Mbps Ethernet RJ45 port,RS232/485 serial terminal,SMA cellular antenna port,SMA GPS antenna port,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,supports global 3G cellular networks,secure VPN client function,serial and Ethernet simultaneous transmission,PLC SMS alarm trigger,low power consumption for remote field cabinet deployment.

Diagnostic

Check power,cellular signal and fault LED;communication failure:verify SIM card,antenna connection and cellular signal strength;data abnormal:check VPN tunnel and serial port configuration.

Product Brief

ICX30-HWC is ProSoft RadioLinx 3G industrial cellular gateway.It provides wireless cellular connection for remote automation equipment,used for remote monitoring,programming and SCADA data acquisition for unmanned industrial sites.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and renovation.
