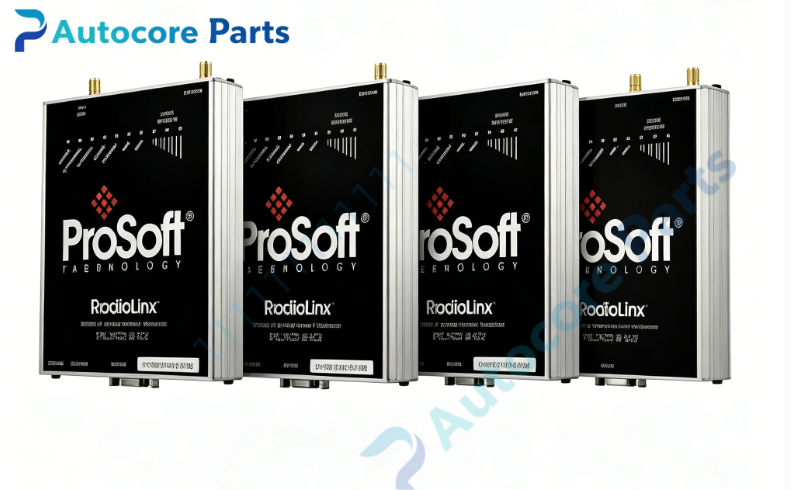

ProSoft BM-xx00-RM1K Wireless I/O Radio Kit for DataRail System

Technical Specifications

Model:BM-xx00-RM1K

Brand:ProSoft

Product type:Wireless I/O Radio Kit

Power supply:9-30VDC

Communication:ISM radio frequency(868MHz/900MHz/2.4GHz),peer-to-peer wireless I/O

Weight:0.40kg

Operating temperature:-40℃ ~ +70℃

Dimension:156mm102mm35mm

Certification:CE,UL,FCC,RCM

System compatibility

BM-xx00-RM1K belongs to ProSoft DataRail I/O system.It is a factory paired wireless radio kit,works with DataRail backplane and compatible I/O modules,suitable for sites where cable laying is difficult,legacy field signal wiring replacement and remote signal transmission.

Function

It realizes peer-to-peer bidirectional wireless replication of digital and analog I/O signals.Input signals on one station will be synchronously mapped to output channels of the paired remote station.No complex programming required after factory pairing,supports up to 5 I/O modules per backplane.

Installation

DIN rail mounting,install DataRail backplane,attach radio module and field I/O modules,connect antenna and 24VDC power supply,check LED indicators after power on,pre-paired modules work directly without extra configuration.

Interface

SMA antenna port,DataRail backplane connector,power terminal,run and fault status LED indicators.

Feature

Factory pre-paired radio modules,no programming needed,licence-free ISM frequency band,supports long-distance wireless I/O transmission,hot-pluggable DataRail I/O modules,compact DIN rail design for industrial cabinet installation.

Diagnostic

Check power,run and fault LED;communication failure:verify antenna connection,obstacle interference,power supply;data abnormal:check backplane connection and I/O module status.

Product Brief

BM-xx00-RM1K is ProSoft DataRail wireless I/O radio kit,used for replacing hardwired field cables and achieving peer-to-peer wireless transmission of analog and discrete I/O signals for industrial automation system maintenance and transformation.
