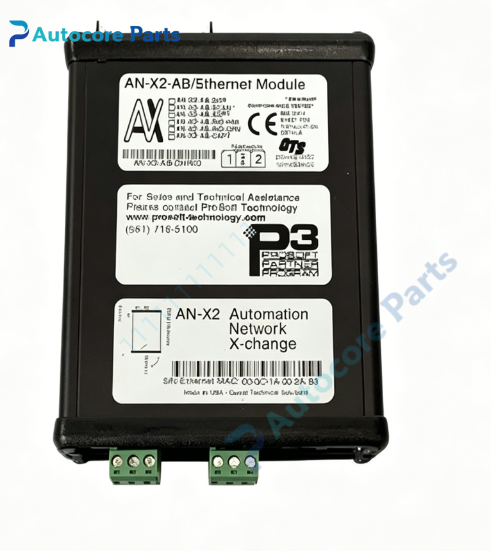

ProSoft AN-X2-AB-DHRIO EtherNet/IP to Remote I/O & DH+ Gateway

Technical Specifications

Model:AN-X2-AB-DHRIO

Brand:ProSoft

Product type:EtherNet/IP to Allen-Bradley Remote I/O / DH+ Standalone DIN Rail Gateway

Power supply:12~24VDC,100mA@24VDC,max 2.4W

Ethernet:110/100Mbps RJ45,auto MDIX

RIO/DH+ port:3-pin Phoenix terminal block

DH+ baud rate:57.6k,115.2k,230.4kbps

Max RIO racks:32 racks

MicroSD card slot:for configuration and firmware storage

Weight:0.30kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:107mm126mm*34mm

Certification:CE,UL,Class I Division2,IP30

System compatibility

AN-X2-AB-DHRIO belongs to ProSoft AN-X2 series legacy Rockwell network gateway.

Realize communication between modern EtherNet/IP controllers and old Allen-Bradley RIO or DH+ network devices.

Compatible with ControlLogix,CompactLogix,PLC-5,SLC500,PanelView,1794 Flex I/O,legacy AC drives.

Suitable for old production line renovation,PLC system migration,without modifying original PLC logic program and spare replacement.

Function

Support five operation modes:SCAN,DRV,HMI,DHP,ADAPT.

SCAN mode:ControlLogix/CompactLogix control traditional RIO I/O racks.

DRV mode:Upgrade up to 4 old RIO drives to EtherNet/IP drives.

HMI mode:Upgrade up to 8 RIO PanelView terminals to EtherNet/IP PanelView Plus.

DHP mode:Realize DH+ network remote upload,download and monitoring over EtherNet/IP.

ADAPT mode:Passive monitor RIO network traffic,auto build network configuration.

Built-in web server for configuration,diagnostic view,firmware upgrade and config file download/upload.

Auto-configuration function,automatically identify RIO network nodes from bus traffic.

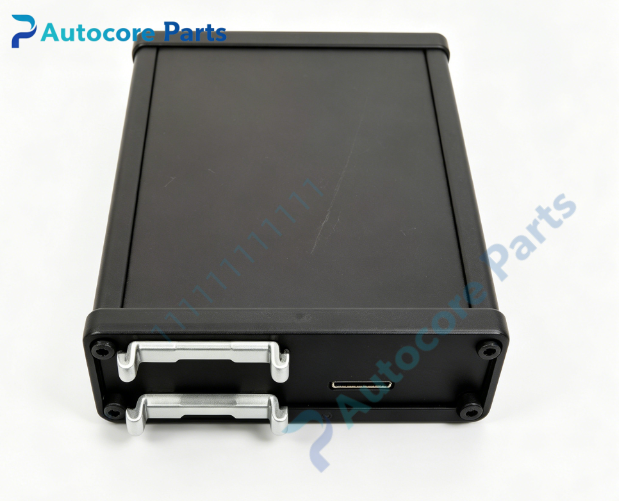

MicroSD card realize configuration cloning,fast field replacement.

Support DH+ station address 0~77 octal.

Installation

Mount gateway on DIN rail or desktop.

Connect 12~24VDC power supply and earth terminal.

Wire RIO/DH+ bus cable to 3-pin Phoenix terminal.

Connect RJ45 port to EtherNet/IP control network.

Select working mode,set baud rate and rack mapping via built-in web page.

Download configuration to gateway,check LED indicators after power-on.

Interface

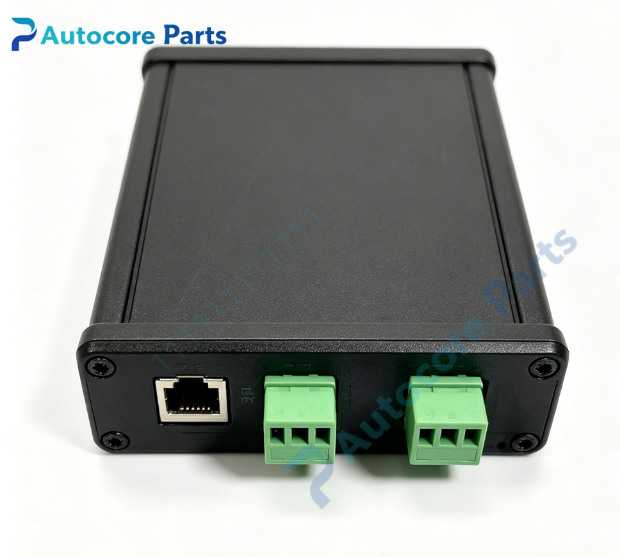

1*10/100Mbps RJ45 ethernet port,3-pin Phoenix RIO/DH+ terminal,3-pin power terminal,microSD slot,LED indicators:PWR,ETH,NET,ERR.

Feature

Compact DIN rail housing,suitable for cabinet installation.

Integrated multi-mode function,one gateway for RIO and DH+ two legacy networks.

Network auto-scan and auto-config,reduce manual configuration workload.

No need modify original PLC program during system migration,lower upgrade risk.

MicroSD card configuration backup,simple spare replacement.

Built-in web diagnostic page,view communication counters and fault status remotely.

Shock and vibration resistant design,stable long-term operation in industrial cabinet.

Diagnostic

Check PWR and NET LED;communication failure:verify bus wiring,terminal resistor and baud rate;data abnormal:check rack mapping,working mode selection and EtherNet/IP connection.

Product Brief

AN-X2-AB-DHRIO is ProSoft AN-X2 series protocol gateway for Rockwell legacy network migration.

It bridges EtherNet/IP control system with Allen-Bradley Remote I/O and DH+ Data Highway Plus network,widely used for old production line PLC and I/O system renovation and upgrade.
