OPTIMATION OP-1212 Lamp Pushbutton Operator Panel

Module Feature

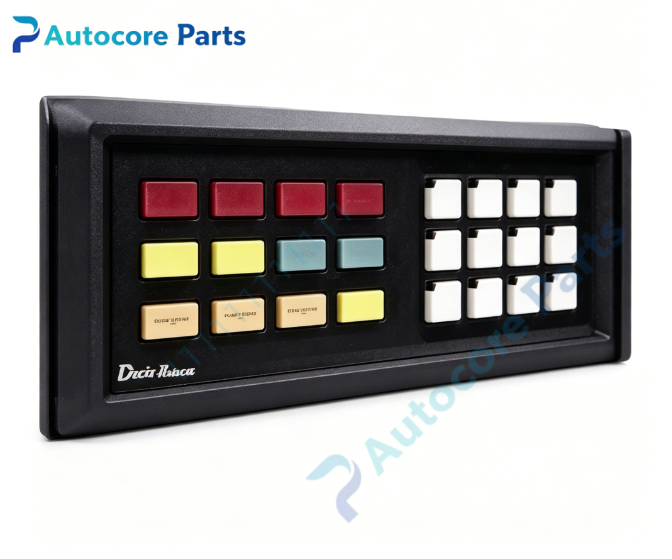

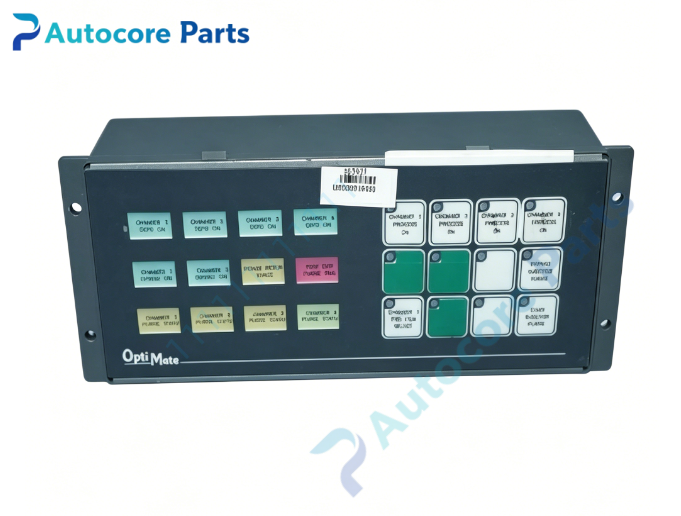

OPTIMATION OP-1212 belongs to OptiMate series lamp pushbutton operator panel. Equipped with 12 membrane pushbuttons and 12 corresponding integrated LED indicators. Each LED supports independent ON/OFF and flashing alarm function. Custom legend label plate can be fitted on front panel for marking equipment functions. Supports RS422 multi-drop serial bus communication and compatible with OP-9001 / OM-9001-2 communication master. DIP switches on rear panel for station address and bus termination resistor setting. Front panel meets NEMA4 / IP65 protection grade. Power consumption 7W. Widely used for local manual operation and status/alarm indication in semiconductor wet bench and chemical delivery control cabinets.

Working principle: OP-1212 communicates over RS422 multi-drop bus with communication master and host PLC. PLC controls each LED status to display running, fault and interlock signals. Operator keypad inputs are transmitted back to PLC for equipment start/stop and mode selection. Multiple OptiMate operator panels can share one PLC serial port via multi-drop network. Onboard components:12 sealed membrane pushbuttons,12 LED indicator lamps,main control PCB,RS422 transceiver circuit,DIP switch bank,metal front frame,power and communication terminal block

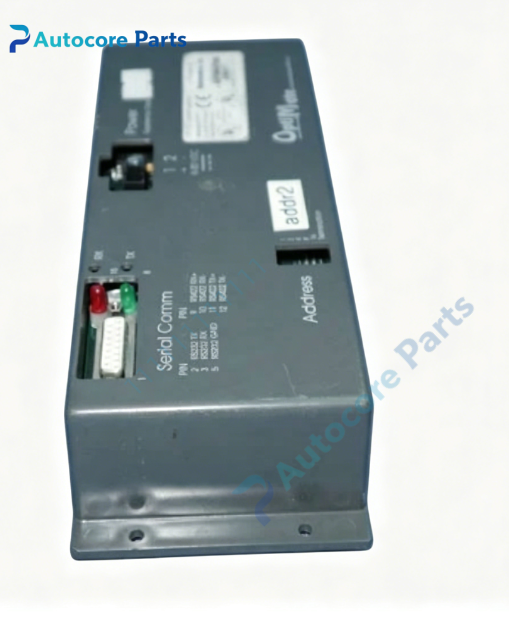

LED indicators12 front panel per-channel status LEDs; rear side power and bi-color TX/RX communication LEDs

Hardware self-diagnosis

Visual inspection, pushbutton functional test, LED lighting test,RS422 bus communication test,station address conflict verification

Programming software

OP-WINEDIT OptiMate configuration software for bit mapping,alarm flash logic,baud rate and station address assignment

Electrical & Process Parameters

Power supply:8 ~ 30VDC Power consumption:7W I/O:12 membrane pushbuttons,12 LED indicators Communication:RS422 multi-drop serial bus Mount type:Cabinet panel cutout mounting

Mechanical & Structure

Mounting:Panel cutout installation with locking studs Protection class:IP65 / NEMA4 front face, IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate lamp pushbutton operator panel

System compatibility

Compatible with OP-9001, OM-9001-2 communication master gateway; works with OL4054, OL4058, OL4228 OptiLogic RTU racks and mainstream PLC.

Function

OP-1212 pushbutton indicator panel manufactured by OPTIMATION. It provides local manual operation and visual status indication. Mismatched baud rate, duplicated station address or missing termination resistor will cause communication failure. It is local control interface component for wet bench chemical delivery automation control system.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and secure mounting studs. Wire 8~30VDC power and shielded RS422 multi-drop bus cable. Set DIP switch address and termination resistor, download project via OP-WINEDIT, verify button trigger and LED indication before system startup.

InterfaceDC power terminal block, RS422 bus terminal block, front membrane pushbuttons and LED indicators on housing of OP-1212.

Diagnostic

No communication:Baud rate mismatch, wiring fault or duplicate station address. LED not lighting:Power supply out of 8~30VDC range or LED failure. Single button no response:Membrane keypad aging or damage. Intermittent connection:Unshielded cable and electromagnetic interference.

Product Brief

OP-1212 OPTIMATION OptiMate lamp pushbutton operator panel,8~30VDC supply,12 membrane buttons and 12 LED indicators,RS422 multi-drop bus,IP65 front panel,for semiconductor wet bench and chemical delivery equipment local operation and alarm status indication.
