OPTIMATION OP-1124-1 Annunciator Panel

Module Feature

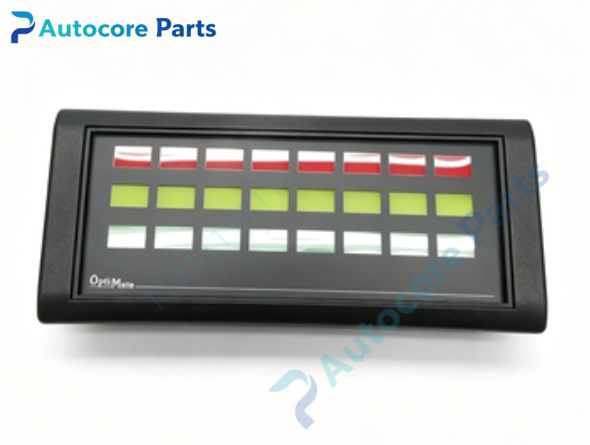

OPTIMATION OP-1124-1 belongs to OptiMate series 24-point LED annunciator panel. It is used to display equipment operating status and system alarms. Equipped with 24 high-brightness LED indicators, each LED supports steady ON, OFF and flashing alarm mode. Customizable legend label can be installed behind front protective faceplate for alarm text marking. It adopts RS422 multi-drop serial bus communication and can work with OP-9001 / OM-9001-2 communication master. Front panel meets NEMA4 / IP65 protection standard. NSMP means New Surplus Manufacturer Package, brand new surplus spare with original factory packaging. Widely used in semiconductor wet bench and chemical delivery control cabinet.

Working principle: OP-1124-1 receives control commands from host PLC via RS422 multi-drop bus. Each LED channel can be independently controlled to show running state or alarm flashing status. Multiple OptiMate HMI and annunciator panels can share one PLC serial port through multi-drop bus network. Onboard components:24 high intensity LED lamp modules, main control PCB, RS422 serial transceiver circuit, front label holder, metal front frame, power and communication bi-color LED indicators

LED indicators24 configurable alarm LED lamps plus power & communication bi-color LED indicators on front panel

Hardware self-diagnosis

Visual inspection, all LED lighting and flash function test, serial communication test, station address conflict verification

Programming software

OP-WINEDIT OptiMate configuration software for alarm tag mapping, LED flash logic, baud rate and station address setup

Electrical & Process Parameters

Power supply:8 ~ 30VDC Max power consumption:10VA LED quantity:24 high intensity indicators LED mode:On / Off / Flashing configurable Communication:RS422 multi-drop serial bus Mount type:Cabinet panel cutout mounting Condition:NSMP (New Surplus Manufacturer Package)

Mechanical & Structure

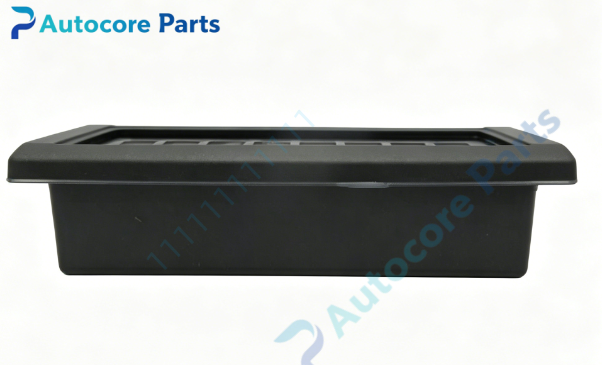

Mounting:Front panel cutout installation with locking clamps Protection class:IP65 / NEMA4 front face, IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate 24-point LED annunciator panel

System compatibility

Compatible with OP-9001, OM-9001-2 communication master gateway; works with OL4054, OL4058, OL4228 OptiLogic RTU racks and mainstream PLC.

Function

OP-1124-1 annunciator panel manufactured by OPTIMATION. It visualizes process alarms and discrete equipment status. Incorrect baud rate, station address conflict or missing bus termination resistor will cause communication failure. NSMP version is surplus new spare with original manufacturer package. It is dedicated alarm indication component for wet bench chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and fasten locking clamps. Wire 8-30VDC power and shielded RS422 multi-drop bus cable. Set station address and baud rate, download configuration project in OP-WINEDIT, test all LED indicators before system commissioning.

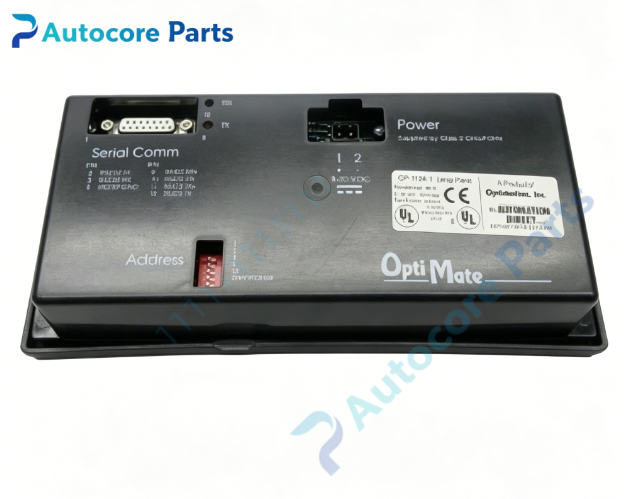

InterfaceRS422 terminal block, DC power terminal block, 24 alarm LED indicators and power/communication LED on housing of OP-1124-1.

Diagnostic

No serial communication:Baud rate mismatch, wiring fault or missing termination resistor. All LEDs no action:Power supply outside 8~30VDC range. Single LED not lighting:Individual LED damage. Intermittent alarm flicker:Unshielded cable and electromagnetic interference.

Product Brief

OP-1124-1 OPTIMATION OptiMate 24-point LED annunciator panel,8~30VDC supply,RS422 multi-drop bus,IP65 front panel,NSMP new surplus with original package,for semiconductor wet bench and chemical delivery system alarm and equipment status visual indication.
