OPTIMATION Inc. OL0001 Blank Filler Card

Module Feature

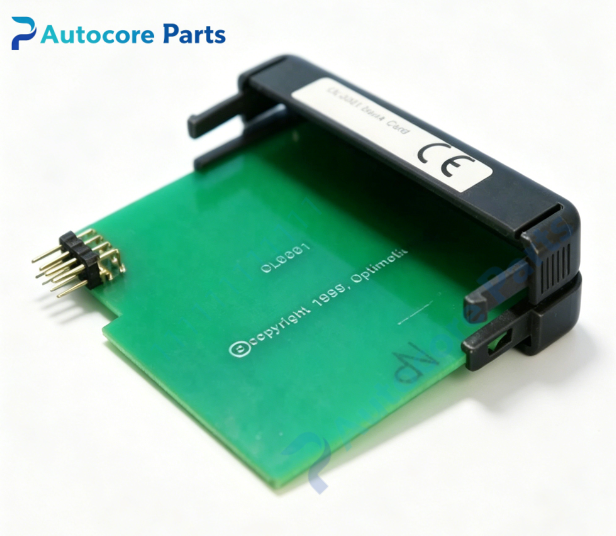

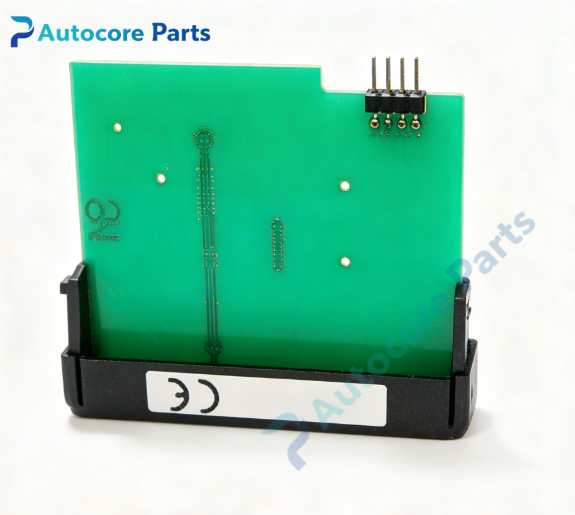

OPTIMATION Inc. OL0001 is OptiLogic series mechanical blank filler card. It is designed to cover unused empty slots inside OptiLogic RTU racks including OL4054, OL4058 and OL4228. Installing this filler card maintains internal airflow path inside the rack, reduces electromagnetic interference, keeps EMC shielding performance, and protects backplane edge connectors from dust, metal debris and contamination. It has the identical mechanical dimensions and snap locking structure as standard OptiLogic I/O modules. Widely used in semiconductor wet bench and chemical fluid delivery control cabinet I/O rack assembly.

Working principle: OL0001 mechanically occupies vacant card slot. It seals the empty opening of the rack card cage, stabilizes internal air circulation and prevents foreign matter from falling onto backplane connectors. This filler card contains no electronic circuit. Onboard components: Plastic/metal blank panel, snap locking latch mechanism, no electronic components

LED indicatorsNo LED indicators, purely passive mechanical accessory

Hardware self-diagnosis

Visual inspection, mechanical fit test, locking latch functional check

Programming softwareNo configuration software required, mechanical accessory

Electrical & Process ParametersNo electrical circuit, purely mechanical component

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION Inc. OptiLogic blank filler card

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU chassis.

Function

OL0001 blank filler card manufactured by OPTIMATION Inc. Empty slots without filler card will degrade heat dissipation and EMC performance. It is mechanical accessory for wet bench automation OptiLogic I/O rack assembly.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert OL0001 blank card into unused slot and lock latches, confirm card is fully seated.

InterfaceNo electrical interface, only mechanical locking structure matching OptiLogic rack slot.

Diagnostic

Cannot insert into slot:Deformed card latch or slot guide rail damage. Card pops out:Latch not fully engaged.
