OPTIMATION OM609 OptiMate Combination Operator Panel

Module Feature

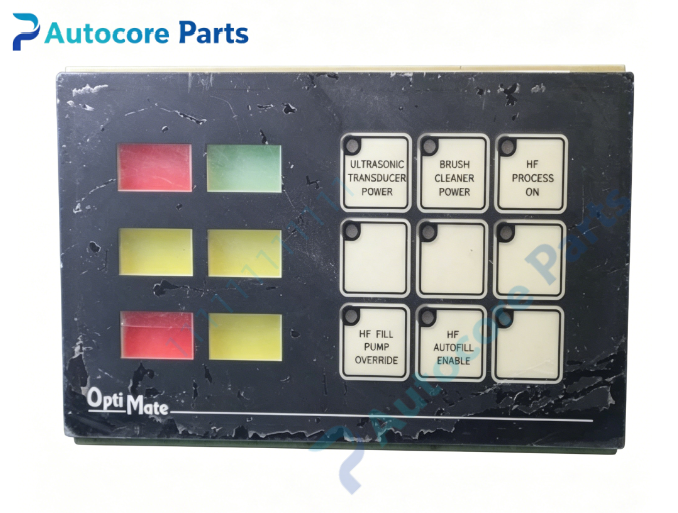

OPTIMATION OM609 belongs to OptiMate series combination lamp pushbutton operator panel. Equipped with 6 high intensity LED light bar indicators and 9 membrane pushbuttons. Each LED can be independently configured for ON, OFF or flashing alarm mode. Each pushbutton supports momentary or latching operation. Custom legend label inserts can be fitted on front panel for marking equipment function descriptions. It supports RS232 and RS422 multi-drop serial bus communication, compatible with OptiMate gateway and OptiLogic OL4054 RTU rack system. Front panel meets NEMA4 / IP65 protection grade. Widely used for local manual operation and visual status indication in semiconductor wet bench and chemical delivery control cabinet.

Working principle: OM609 communicates over RS232/RS422 serial bus with communication master and host PLC. PLC controls each LED status to display running, fault and interlock signals. Operator pressing pushbuttons sends digital command signals back to PLC for equipment start, stop and mode switching. If serial communication is lost for 12 seconds, all LED indicators will rapidly flash to trigger communication fault alarm. Multiple OptiMate panels can share one PLC serial port via multi-drop network.

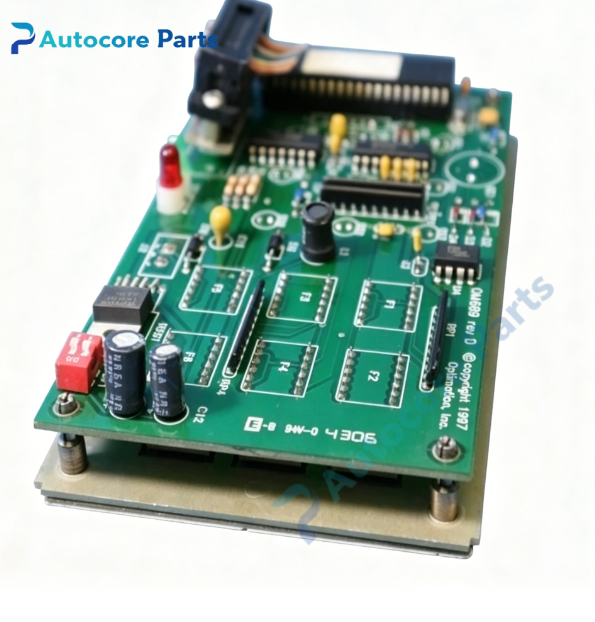

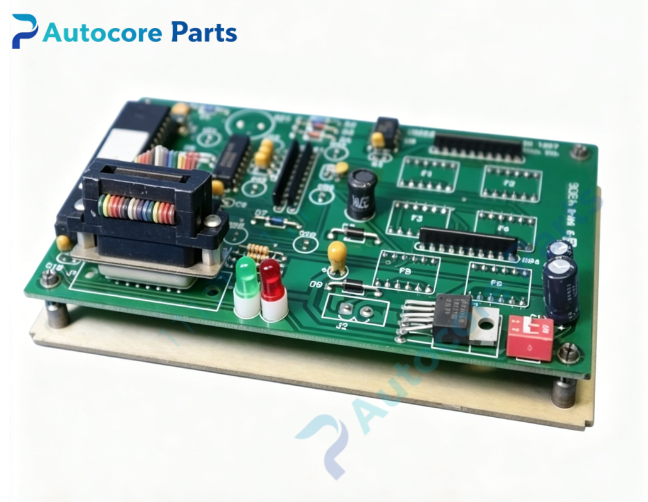

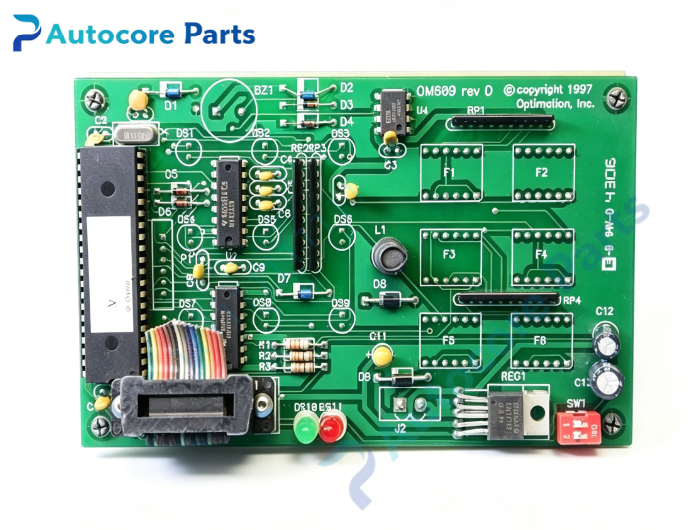

Onboard components:Sealed membrane pushbuttons,6 high brightness LED indicators,main control PCB,RS232/RS422 transceiver circuit,metal front frame,removable legend label inserts,power and communication terminal block

LED indicators6 configurable front panel LED light bar indicators for status and alarm display.

Hardware self-diagnosis

Visual inspection, pushbutton functional test, LED lighting test, serial bus communication test, station address conflict verification.

Programming software

OP-WINEDIT OptiMate configuration software for button function definition,LED flash logic,baud rate and station address assignment.

Electrical & Process Parameters

Power supply:8 ~ 30VDC Power consumption:2.4VA I/O allocation:6 LED indicators,9 membrane pushbuttons Communication:RS232 / RS422 serial bus Baud rate range:4800 ~19200 baud

Mechanical & Structure

Mounting:Panel cutout installation Protection class:NEMA4 / IP65 front face, IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate combination pushbutton indicator operator panel

System compatibility

Compatible with OP-9001, OM-9001-2 communication master gateway; works with OL4054, OL4058, OL4228 OptiLogic RTU racks and mainstream PLC.

Function

OM609 pushbutton indicator panel manufactured by OPTIMATION. It provides local manual operation and visual equipment status indication. Mismatched baud rate, duplicate station address or broken communication cable will cause communication failure. It is local human-machine interface component for wet bench chemical delivery automation control system.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and secure mounting studs. Wire 8~30VDC power and shielded RS422 multi-drop bus cable. Set station address and communication parameters, download configuration project via OP-WINEDIT, verify button trigger and LED indication before system startup.

InterfaceDC power terminal block, RS232/RS422 serial terminal block, front membrane pushbuttons and LED indicators on housing of OM609.

Diagnostic

No communication:Baud rate mismatch, wiring fault or duplicate station address. LED not lighting:Power supply out of 8~30VDC range or LED damage. Single button no response:Membrane pushbutton aging or surface damage. All LEDs fast flashing:Serial communication loss, check bus wiring and master gateway.

Product Brief

OM609 OPTIMATION OptiMate combination operator panel,8~30VDC supply,6 LED indicators and 9 membrane pushbuttons,supports RS232/RS422 serial communication,NEMA4 front panel,for semiconductor wet bench and chemical delivery equipment local operation and status indication.
