OPTIMATION OL4054 4-Slot RTU Remote Terminal Unit

Module Feature

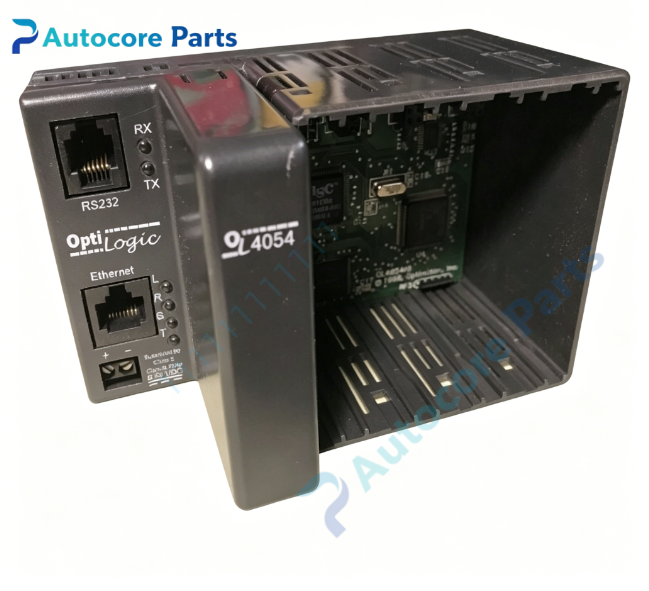

OPTIMATION OL4054 is OptiLogic series 4-slot modular Remote Terminal Unit base chassis. It adopts snap-together card cage design, supports hot pluggable OptiLogic I/O modules. Equipped with 10BaseT 10Mbps Ethernet interface supporting OptiLogic/UDP and IPX protocols, plus RS232 serial port for local configuration or HMI connection. Built-in backplane supplies 2.8A@5V for all installed I/O modules. Compact DIN rail metal housing, users can freely combine digital input, transistor output, relay output, analog and high-speed counter modules. Widely used in small-scale semiconductor wet bench and compact chemical fluid delivery distributed control systems.

Working principle: The internal backplane provides stable power and parallel bus communication for all inserted I/O modules. It collects analog and discrete field signals from I/O cards, transmits data to host controller via Ethernet, and receives control commands to drive field actuators. The RS232 port supports local parameter setting and operator panel connection. Onboard components: Metal DIN rail housing, main motherboard PCB,10BaseT Ethernet transceiver circuit, RS232 serial interface, four module slots, DC power terminal block, backplane edge connectors, front panel status LEDs

LED indicatorsPower, Ethernet link, RS232 TX/RX and rack fault LED indicators on front panel

Hardware self-diagnosis

Visual inspection, slot mechanical fit test, backplane continuity test, Ethernet link test, RS232 loopback test, module slot identification verification

Programming software

OPTIMATION OL System Builder software for network address setup, I/O module mapping, fault log reading and RTU parameter configuration

Electrical & Process Parameters

Power supply:8 ~ 30VDC Backplane power output:2.8A @5V for I/O modules Ethernet:10BaseT 10Mbps, OptiLogic/UDP, IPX Serial port:RS232 interface Slot quantity:4 standard OptiLogic I/O slots Mount type:DIN rail cabinet mounting

Mechanical & Structure

Mounting:DIN rail snap-in installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 4-slot RTU base unit

System compatibility

Compatible with OL2208, OL2208RA, OL2111A, OL2109, OL2408, OL2252, OL2602 OptiLogic I/O modules; works with OP / OM series operator panels and mainstream PLC.

Function

OL4054 RTU base manufactured by OPTIMATION. It acts as compact distributed I/O rack for small process control systems. Poor backplane contact or wrong IP configuration will lead to module offline and communication interruption. It is core modular I/O chassis for wet bench automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Mount chassis on DIN rail. Insert I/O modules into empty slots and lock latches. Wire 8-30VDC power and Ethernet cable. Configure network parameters and test all I/O channels before production startup. Install OL0001 blank filler card for unused slots.

InterfaceDC power terminal block, 10BaseT RJ45 Ethernet port, RS232 serial port, OptiLogic backplane slot connectors, power/communication/fault LED indicators on housing of OL4054.

Diagnostic

No Ethernet communication:IP address mismatch, cable damage or network fault. Module undetected:Damaged edge connector or poor backplane contact. Intermittent signal:Vibration causing loose module seating. Rack power alarm:Overload or loose DC input wiring.

Product Brief

OL4054 OPTIMATION OptiLogic 4-slot RTU remote terminal unit,10BaseT Ethernet supporting OptiLogic/UDP & IPX,built-in RS232,DIN rail mount,modular I/O base for compact semiconductor wet bench and chemical delivery distributed control system.
