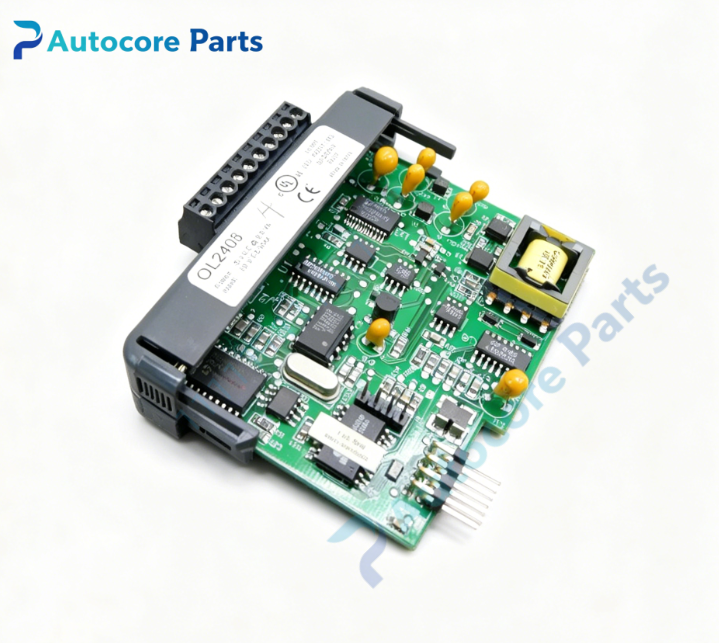

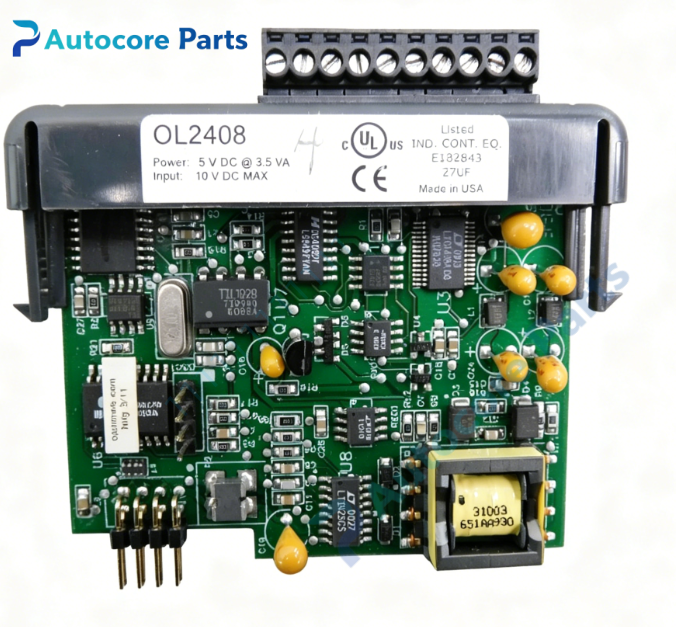

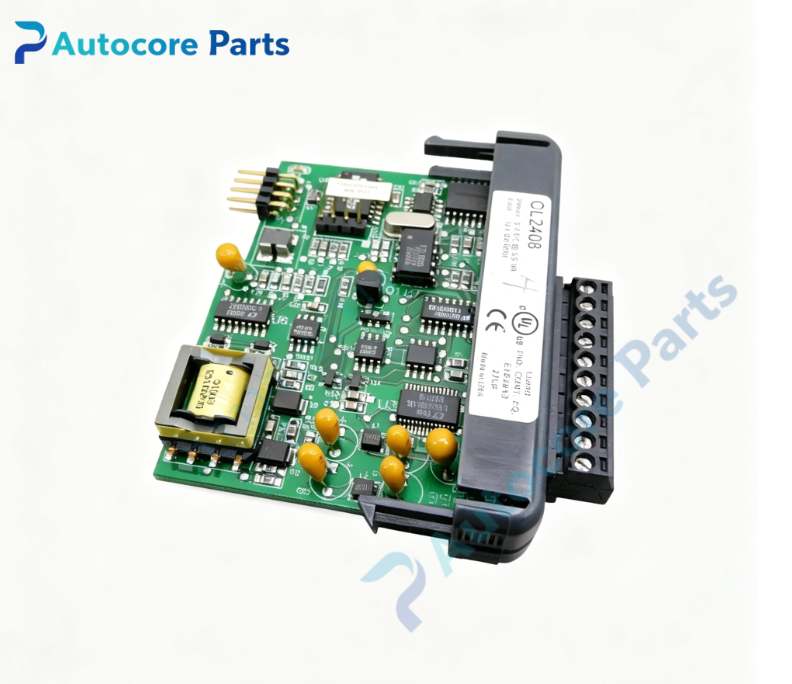

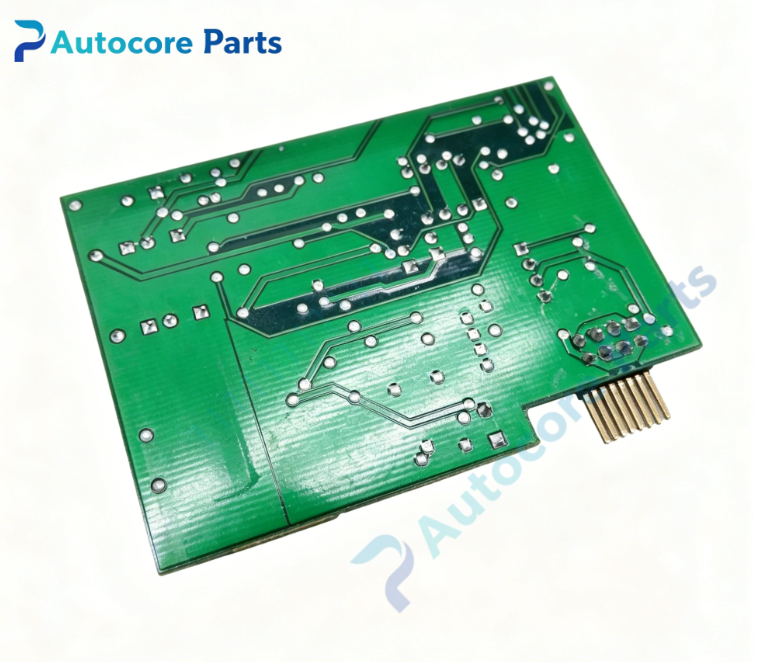

OPTIMATION OL2408 Analog Input Module

Module Feature

OPTIMATION OL2408 belongs to OptiLogic series 8-channel analog voltage input module. It is 14-bit high resolution A/D converter card, each channel configurable for 0-5VDC or 0-10VDC field voltage signal. Built-in signal filtering and surge protection, per-channel LED status indicator, removable terminal block. Standard OptiLogic form factor, plug directly into OL4054, OL4228 OptiLogic RTU rack. Widely used for pressure, level, temperature and flow transmitter signal collection in semiconductor wet bench and chemical delivery control systems.

Working principle: Raw analog voltage signal from field transmitter enters the module, low noise filter removes workshop interference, 14-bit ADC converts analog signal into digital value, data is sent to RTU mainboard via backplane bus for host controller reading. Onboard components: 8-channel 14-bit ADC chips, noise filter circuit, surge protection PCB, removable terminal block, backplane edge connector, front panel per-channel LED indicators

LED indicatorsIndividual channel signal status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, each channel analog reading test, A/D conversion verification, backplane communication check

Programming software

OPTIMATION OL System Builder software for channel range selection, signal filtering and scaling configuration

Electrical & Process Parameters

Power supply:Supplied from rack backplane Resolution:14 bit Input range:0-5VDC / 0-10VDC per channel configurable Accuracy:±0.1% full scale Number of channels:8 analog voltage input channels Terminal:Removable pluggable screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic analog voltage input I/O module

System compatibility

Compatible with OL4054, OL4228 OptiLogic RTU racks, matched with OPTIMATION HMI and PLC for analog process variable collection.

Function

OL2408 analog input module manufactured by OPTIMATION. It measures analog voltage signals from field process transmitters. High resolution ADC provides precise reading for fluid pressure, flow and liquid level. Wiring short or surge may damage input circuit. It is high precision analog acquisition component for wet process automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module into empty rack slot and lock latches. Wire field transmitter cables to removable terminal block, plug terminal back into module. Configure signal range and calibrate all channels before production startup.

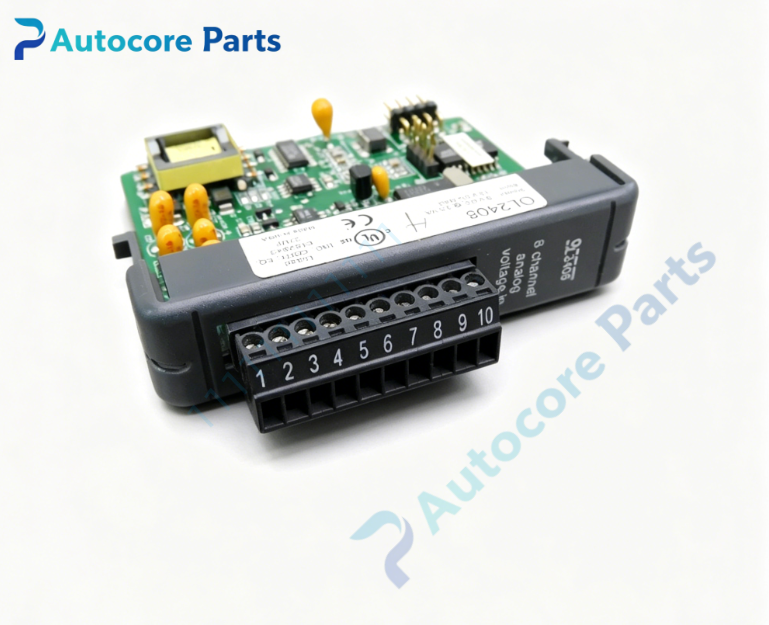

InterfaceField signal removable terminal block, OptiLogic backplane edge connector, per-channel analog status LED indicators on housing of OL2408.

Diagnostic

Analog reading drift:Ground loop interference or sensor wiring resistance. No reading:Field wiring open or channel circuit damage. Fluctuating value:Missing signal shielding or electrical noise. Module not detected:Poor backplane contact.

Product Brief

OL2408 OPTIMATION OptiLogic 8-channel 14-bit analog voltage input module,0-5V/0-10V selectable,with noise filtering and surge protection,for semiconductor wet bench chemical delivery pressure,level and flow analog transmitter signal acquisition.
