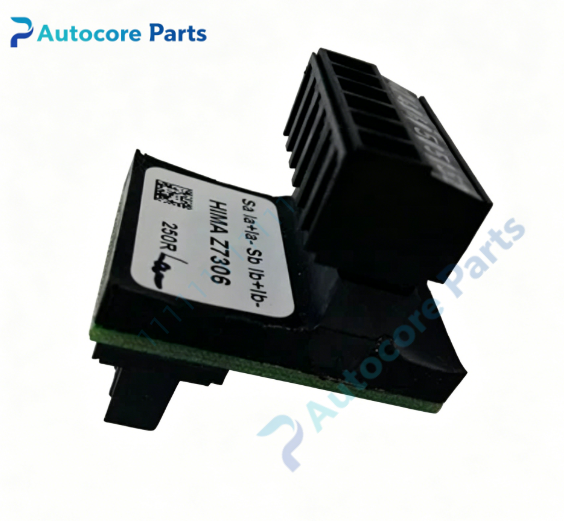

HIMA Z7306 Analog Input Module

Technical Specifications

Model:Z7306

Brand:HIMA

Safety certification:SIL3,IEC61508

Power supply:24V DC

Input channels:16 analog input channels

Input signal:0/4-20mA

Resolution:12 bit

Diagnosis:Wire-break detection,over-range monitoring,channel self-test

Mounting:35mm standard DIN rail installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.42kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X PES safety system,collects field analog process signals such as pressure,level,flow and temperature transmitter output,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 16-channel analog safety input module.It acquires 0/4-20mA field transmitter signals and converts them into digital values for HIQuad X safety controller.Each channel supports continuous wire-break and over-range diagnosis.When signal line broken or process value exceeds limit,the module triggers fault alarm and sends diagnostic message to safety controller.

Installation

Clip onto standard 35mm DIN rail in control cabinet,complete field transmitter wiring via terminal plug,configure channel parameters via SILworX engineering software.

Interface

‑Field signal wiring connector interface

‑Internal safety bus connector

‑LED indicators for channel status,run and fault

Circuit feature

Fail-safe safety design,permanent channel diagnosis,galvanic isolation,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 analog input module Z7306. Common faults:terminal loosening,cable aging,internal channel circuit damage.Confirm system firmware before replacement.

Diagnostic

Wire break,over-range or internal hardware fault triggers fault alarm;controller executes safety interlock logic.

Built‑in function

Z7306 acquires safety analog process signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

Z7306 belongs to HIMA HIQuad X family,DIN rail mounted SIL3 16-channel analog safety input module for 0/4-20mA signals. Verify system compatibility before ordering.Test signal acquisition and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
