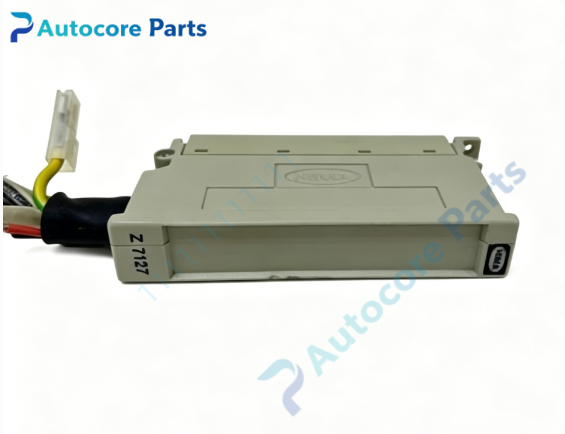

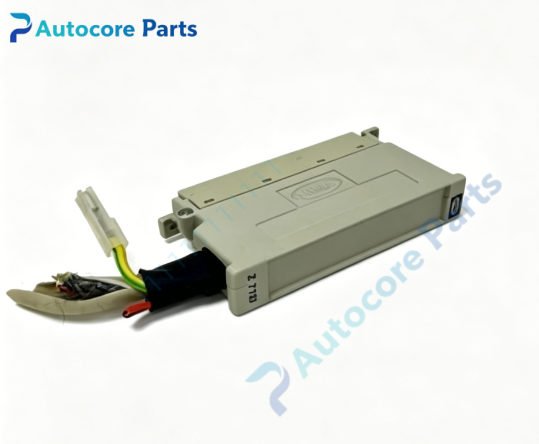

HIMA Z7127 Wiring Terminal Plug

Technical Specifications

Model:Z7127

Brand:HIMA

Type:Passive signal wiring terminal plug

Wire cross-section:0.2~2.5mm²

Mounting:35mm standard DIN rail installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.14kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X PES safety system,matched with Z71xx safety I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA Z7127 passive field wiring terminal plug.It acts as the signal transition terminal for Z71xx series I/O modules,realizes quick connection and disconnection of field signal cables.It simplifies cabinet wiring work and enables fast module replacement for on-site maintenance.

Installation

Clip onto standard 35mm DIN rail inside control cabinet,complete field signal wiring and insert plug into corresponding Z71xx I/O module.

Interface

‑Field signal spring terminals

‑Module side connector

‑DIN rail fixing buckle

Circuit feature

Compact passive connector design,stable signal transmission,good vibration resistance,strong anti-electromagnetic interference,suitable for safety instrument system field wiring in hazardous industrial environment.

Feature

HIQuad X series wiring terminal plug Z7127. Common faults:terminal loosening,connector pin oxidation,cable aging.Check connector contact status before commissioning.

Diagnostic

Poor contact or loose wiring leads to abnormal signal transmission;controller executes safety interlock logic.

Built‑in function

Z7127 provides fast field signal wiring for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

Z7127 belongs to HIMA HIQuad X family,DIN rail mounted passive wiring terminal plug matched with Z71xx safety I/O modules. Verify I/O module compatibility before ordering.Test wiring connection during commissioning. ESD anti‑static protection shall be followed during installation.
