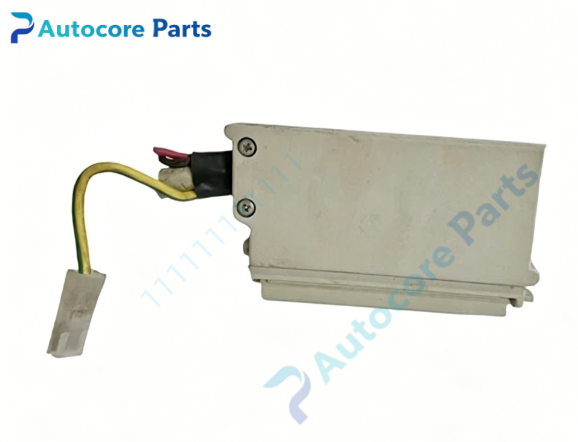

HIMA Z7126 Cable Plug Connector

Technical Specifications

Model:Z7126

Brand:HIMA

Type:Passive field wiring cable plug

Wire cross-section:0.2~2.5mm²

Mounting:35mm standard DIN rail matching installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Dimension:20mm60mm105mm

Weight:0.12kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X PES safety system,matching Z71xx series digital I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA Z7126 passive wiring cable plug.It is the field signal wiring connector for HIQuad X Z71xx I/O modules,realizes quick disconnection and connection of field cables.It simplifies cabinet wiring and speeds up module replacement and maintenance work.

Installation

Pair with Z71xx I/O modules,clip onto 35mm DIN rail,complete field signal wiring and insert the plug into I/O module.

Interface

‑Field signal wiring terminals

‑Module side plug connector

‑DIN rail fixing buckle

Circuit feature

Passive connector design,stable signal transmission,good vibration resistance,suitable for safety instrument system field wiring in hazardous industrial environment.

Feature

HIQuad X series wiring plug Z7126. Common faults:terminal loosening,connector pin oxidation,cable aging.Check plug contact before commissioning.

Diagnostic

Poor contact or loose wiring causes abnormal signal transmission;controller executes safety interlock logic.

Built‑in function

Z7126 provides fast field signal wiring connection for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

Z7126 belongs to HIMA HIQuad X family,passive cable wiring plug matched with Z71xx safety I/O modules. Verify I/O module compatibility before ordering.Test wiring connection during commissioning. ESD anti‑static protection shall be followed during installation.
