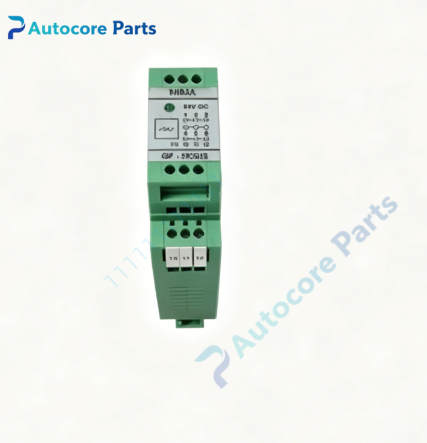

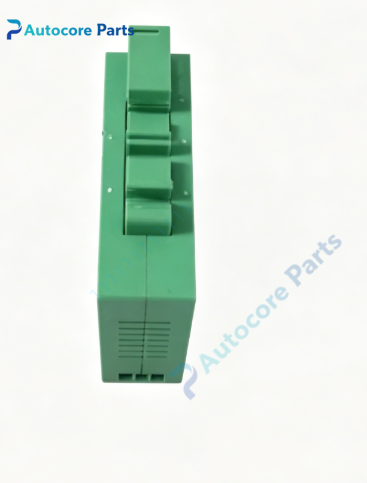

HIMA H7013 Safety Relay Output Module

Technical Specifications

Model:H7013

Brand:HIMA

Safety certification:SIL3,IEC61508

Power supply:24V DC

Type:Safety relay output module

Contact:potential-free safety relay contacts

Max switching voltage:250V AC

Max switching current:6A

Diagnosis:Module self-test,relay status monitoring

Mounting:DIN rail installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.39kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix PES safety system,receive safety control commands from safety controller and output relay contact signals to field shutdown actuators,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 safety relay output module.It receives safety interlock commands from HIMatrix safety controller and controls potential-free relay contacts to switch field safety load circuits.Built-in self-diagnosis monitors relay working state in real time.If relay failure or abnormal status is detected,the module triggers fault alarm and reports fault information to safety controller.

Installation

Clip onto standard DIN rail in control cabinet,wire relay contact terminals with field actuators,configure safety parameters via SILworX engineering software.

Interface

‑24V DC power input terminals

‑Potential-free relay contact terminals

‑LED indicators for run,fault and relay channel status

Circuit feature

SIL3 fail-safe relay output design,electric isolation between control side and field contact side,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIMatrix series SIL3 safety relay output module H7013. Common faults:relay contact wear,coil burnout,terminal aging and corrosion.Confirm system firmware before replacement.

Diagnostic

Relay internal fault or contact damage triggers fault alarm;controller executes safety interlock and shutdown logic.

Built‑in function

H7013 provides safety relay contact output for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

H7013 belongs to HIMA HIMatrix family,DIN rail mounted SIL3 safety relay output module with potential-free contacts. Verify system compatibility before ordering.Test relay switching and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
