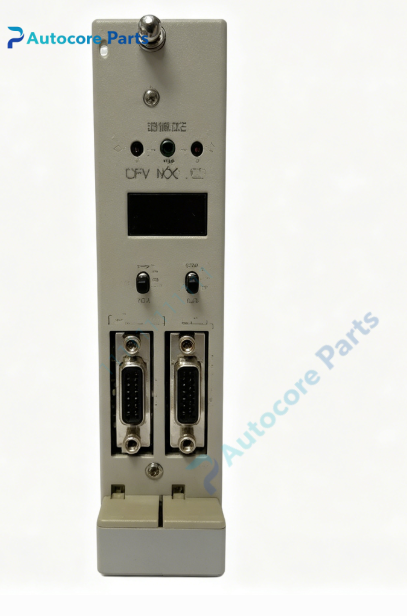

HIMA H7011 Digital Output Module

Technical Specifications

Model:H7011

Brand:HIMA

Safety certification:SIL3,IEC61508

Power supply:24V DC

Type:Digital safety output module

Diagnosis:Channel self-test,wire-break detection,short-circuit monitoring

Mounting:DIN rail installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.38kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix PES safety system,receives safety control commands from safety controller and outputs digital safety signals to field actuators,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 multi-channel digital safety output module.It executes safety output commands sent by HIMatrix safety controller to drive field safety actuators.Each channel supports continuous self-diagnosis to detect wire break and short circuit faults.Once abnormal condition detected,the module triggers fault alarm and transfers fault message to safety controller.

Installation

Clip onto standard DIN rail in control cabinet,complete field actuator wiring,configure channel parameters via SILworX engineering software.

Interface

‑Field signal terminal block

‑Internal safety bus connector

‑LED indicators for channel status,run and fault

Circuit feature

Fail-safe safety design,permanent channel diagnosis,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIMatrix series SIL3 digital output module H7011. Common faults:terminal aging,signal line corrosion,internal channel circuit damage.Confirm system firmware before replacement.

Diagnostic

Wire break,short circuit or internal channel fault triggers fault alarm;controller executes safety interlock logic.

Built‑in function

H7011 outputs safety control signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

H7011 belongs to HIMA HIMatrix family,SIL3 multi-channel digital safety output module with DIN rail mounting. Verify system compatibility before ordering.Test output and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
